Terminal
Nomor Part: 8WH6001-4PF00
Kategori
Multi level installation terminal block

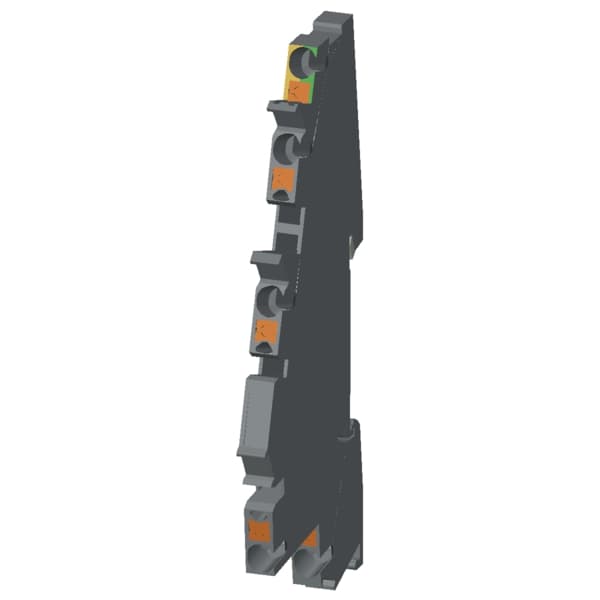

Siemens 8WH6001-4PF00. Terminal, iPo plug-in terminal, installation terminal, PE/L/L, 2.5 mm², gray.
Spesifikasi
Mechanical
Net Weight20 g

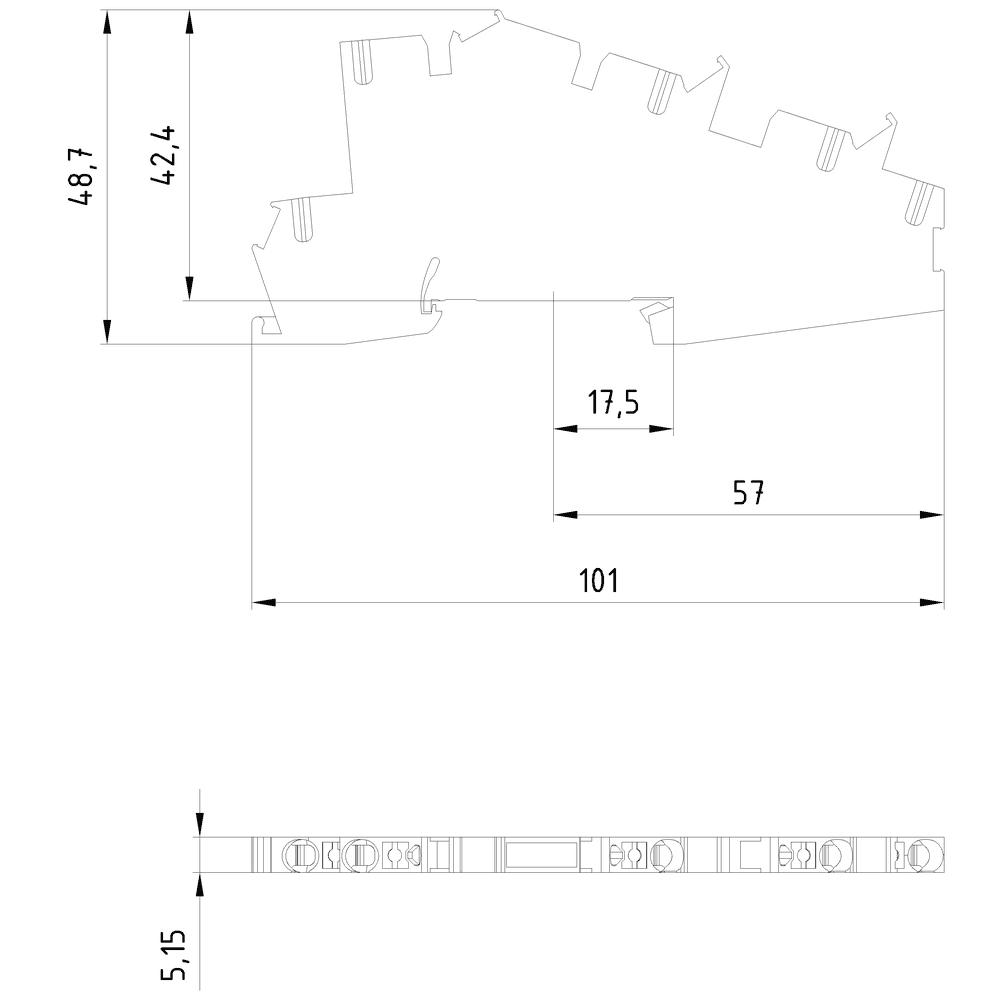

Dimensions
Depth48.7 mm
Other
length101 mm
fastening methodothers
product brand nameSENTRON
insulation materialthermoplastic
product designationTerminal blocks
number of potentials2
type of connection 1plug terminal connection
type of connection 2plug terminal connection
design of the productiPo three-tier isolating terminal
position of the terminaltop
terminal contact spacing5.2 mm
product function N functionNo
color of the insulating bodygray
product function PE functionYes
operating voltage rated value400 V
material of the insulating bodyOther
operational current rated value24 A
product feature N separation slidesNo
height with lowest-profile installation100.9 mm
combustibility class according to UL 94V0
