Nomor Part: 8WH1201-0AM00
Kategori
Multi level installation terminal block

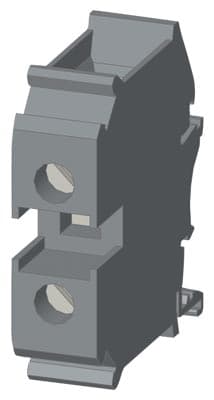

Siemens 8WH1201-0AM00. Terminal, screw terminal, installation terminal, through-type terminal, 35 mm², gray.
Spesifikasi
Mechanical
Net Weight46 g
Dimensions
Depth51 mm
Other
length55 mm
stripped length16 mm
fastening methodDIN rail 35 mm
product brand nameSENTRON
insulation materialthermoplastic
product designationTerminal blocks
number of potentials2
type of connection 1screw-type terminal
type of connection 2screw-type terminal
position of the terminaltop
terminal contact spacing15 mm
product function N functionNo
color of the insulating bodygray
product function PE functionNo
operating voltage rated value800 V
material of the insulating bodyPA
operational current rated value125 A
product feature N separation slidesNo
height with lowest-profile installation51 mm
combustibility class according to UL 94V2
