Aktif
Terminal
Nomor Part: 8WH2020-5JF30
Kategori
Component terminal block

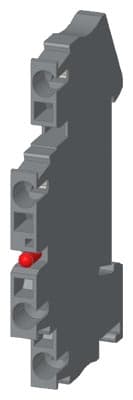

Siemens 8WH2020-5JF30. Terminal, spring-loaded terminal, two-tier, diode term. with ill. display, 2.5 mm², gray.
Spesifikasi
Mechanical
Net Weight10 g

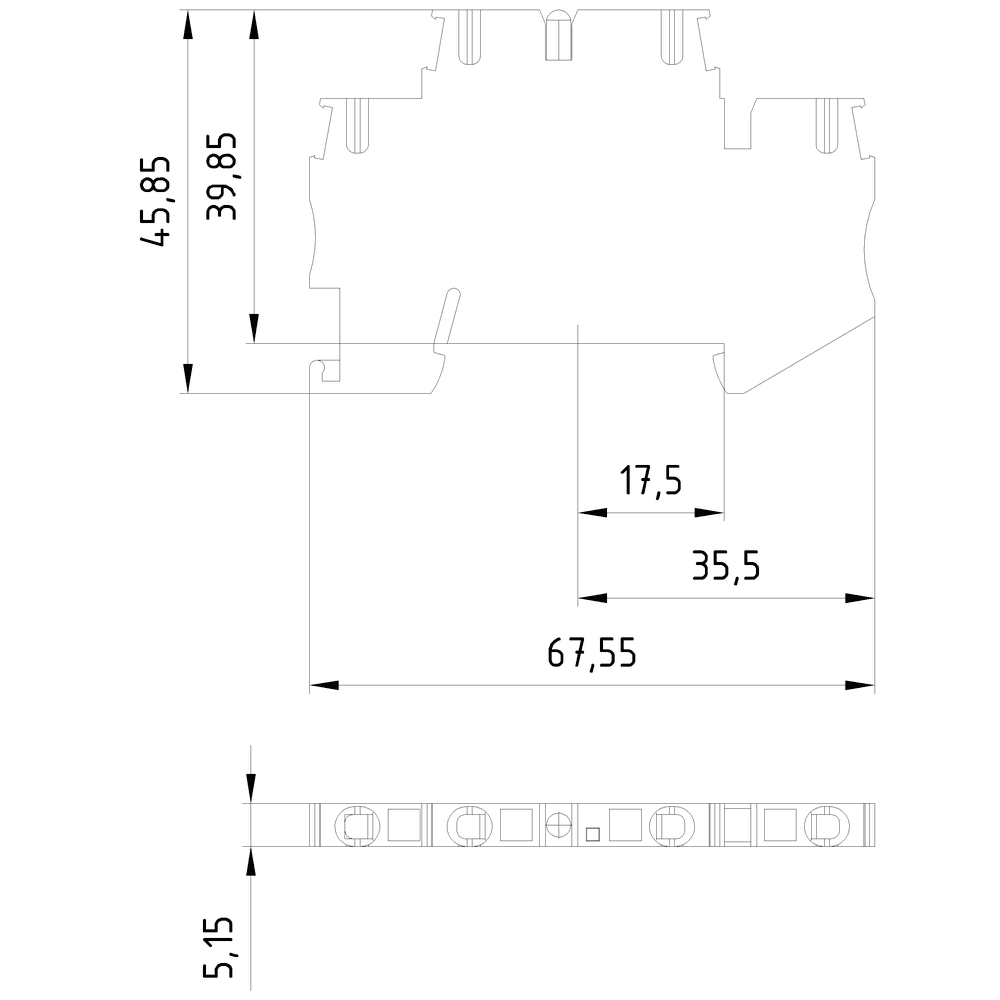

Dimensions
Depth45.9 mm
Other
colorgrey
length67.5 mm
component typeLED and diode
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialothers
product designationTerminal blocks
type of connection 1spring-loaded terminals
type of connection 2spring-loaded terminal
design of the productdiode terminal
position of the terminaltop
terminal contact spacing5.2 mm
number of terminal levels2
operating voltage rated value250 V
height with lowest-profile installation67.58 mm
combustibility class according to UL 94V0
product component required end cover plateYes
number of terminal points per terminal level4
design of terminal terminal levels internally linkedNo
