Nomor Part: 8WH1000-6LG00
Kategori
Component terminal block
Siemens 8WH1000-6LG00. Terminal, screw terminal, isolating terminal with diode, 4 mm², gray.
Spesifikasi
Mechanical
Net Weight11 g

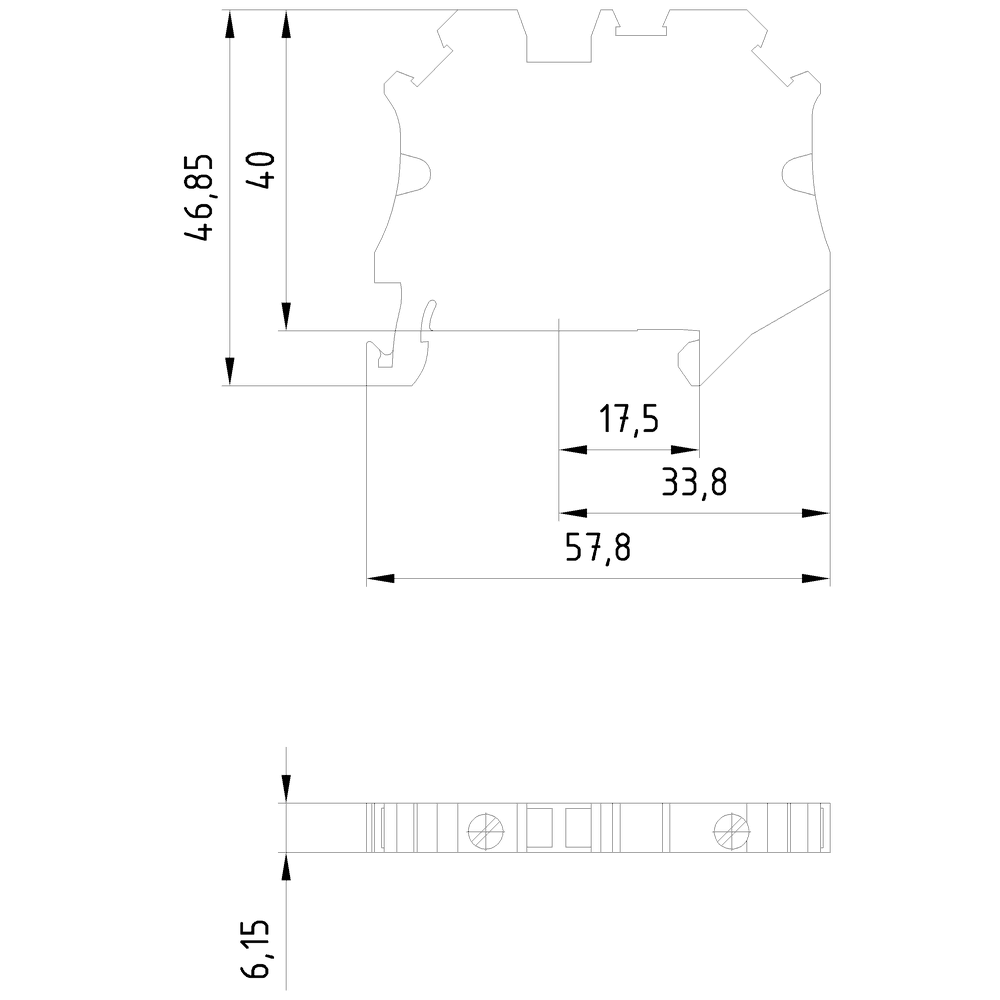

Dimensions
Depth47.5 mm
Other
colorgrey
length48 mm
stripped length9 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialPA
product designationTerminal blocks
type of connection 1screw terminals
type of connection 2screw terminals
design of the productisolating terminal
position of the terminalside
terminal contact spacing6.2 mm
number of terminal levels1
operating voltage rated value800 V
material of the insulating bodyPA
operational current rated value0.5 A
height with lowest-profile installation57.8 mm
combustibility class according to UL 94V0
number of terminal points per terminal level2
design of terminal terminal levels internally linkedNo
