Nomor Part: 8WH2000-0CF07
Kategori
Ground terminal block
Siemens 8WH2000-0CF07. Terminal, spring-loaded terminal, PE/PEN terminal, 2.5 mm², green-yellow.
Spesifikasi
Mechanical
Net Weight10 g

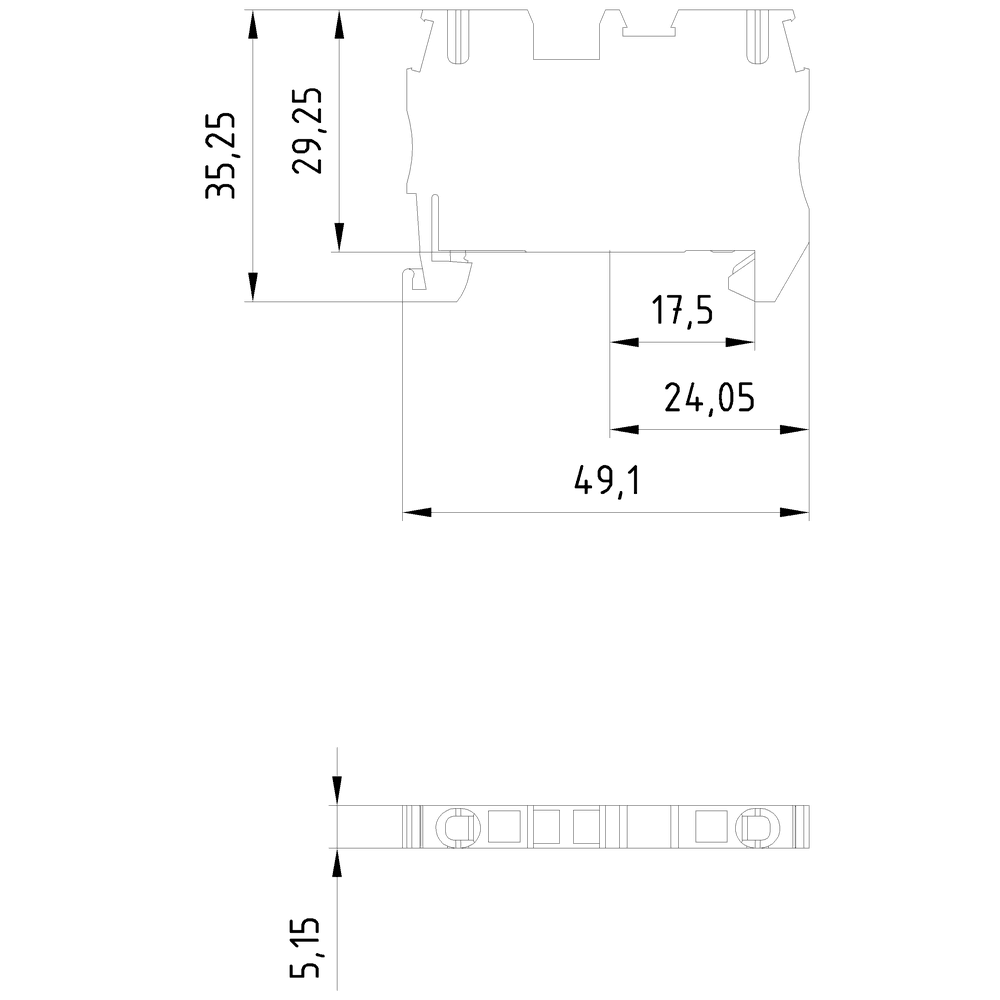

Dimensions
Height49.13 mm
Depth35.25 mm
Other
colorgreen-yellow
length48.5 mm
stripped length9 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialPA
product designationTerminal blocks
type of connection 1spring-loaded terminal
type of connection 2spring-loaded terminal
design of the productPE through-type terminal
position of the terminaltop
terminal contact spacing5.2 mm
number of terminal levels1
product feature PEN functionNo
material of the insulating bodyOther
height with lowest-profile installation36.8 mm
combustibility class according to UL 94V0
product component required end cover plateYes
number of terminal points per terminal level2
