Aktif
Terminal
Nomor Part: 8WH1000-0CH07
Kategori
Ground terminal block

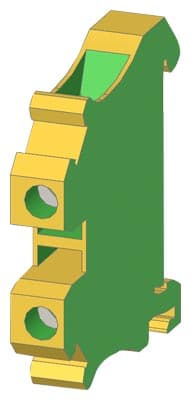

Siemens 8WH1000-0CH07. Terminal, screw terminal, PE/PEN terminal, 6 mm², green-yellow.
Spesifikasi
Mechanical
Net Weight22 g
Dimensions
Height48 mm
Depth46.85 mm
Other
colorgreen-yellow
length48 mm
stripped length10 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialPA
product designationTerminal blocks
type of connection 1screw-type terminal
type of connection 2screw-type terminal
design of the productPE through-type terminal
position of the terminallateral
terminal contact spacing8.2 mm
number of terminal levels1
product feature PEN functionNo
material of the insulating bodyPA
height with lowest-profile installation47.5 mm
combustibility class according to UL 94V0
product component required end cover plateYes
number of terminal points per terminal level2
