Nomor Part: 8WH1201-0CM07
Kategori
Ground terminal block

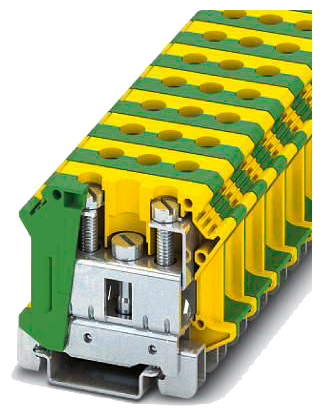

Siemens 8WH1201-0CM07. Terminal, screw terminal, installation terminal, PE/PEN terminal, 35 mm², green-yellow.
Spesifikasi
Mechanical
Net Weight67 g
Dimensions
Height48.6 mm
Depth15 mm
Other
colorgreen-yellow
length58 mm
stripped length16 mm
fastening methodDIN rail 35 mm
product brand nameSENTRON
insulation materialthermoplastic
product designationPE insta terminal 35 mm², 12 mm
type of connection 1screw-type terminal
type of connection 2screw-type terminal
design of the productPE installation terminal
position of the terminaltop
terminal contact spacing15 mm
number of terminal levels1
product feature PEN functionNo
material of the insulating bodyPA
height with lowest-profile installation51 mm
combustibility class according to UL 94V2
product component required end cover plateYes
number of terminal points per terminal level2
