Aktif
Terminal
Nomor Part: 8WH1201-0BK01
Kategori
Neutral disconnect terminal block

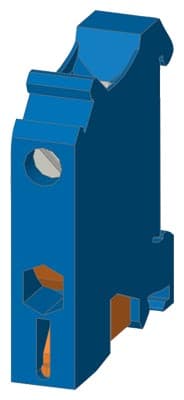

Siemens 8WH1201-0BK01. Terminal, screw terminal, installation terminal, N conductor isolating terminal, 16 mm², blue.
Spesifikasi
Mechanical
Net Weight33 g

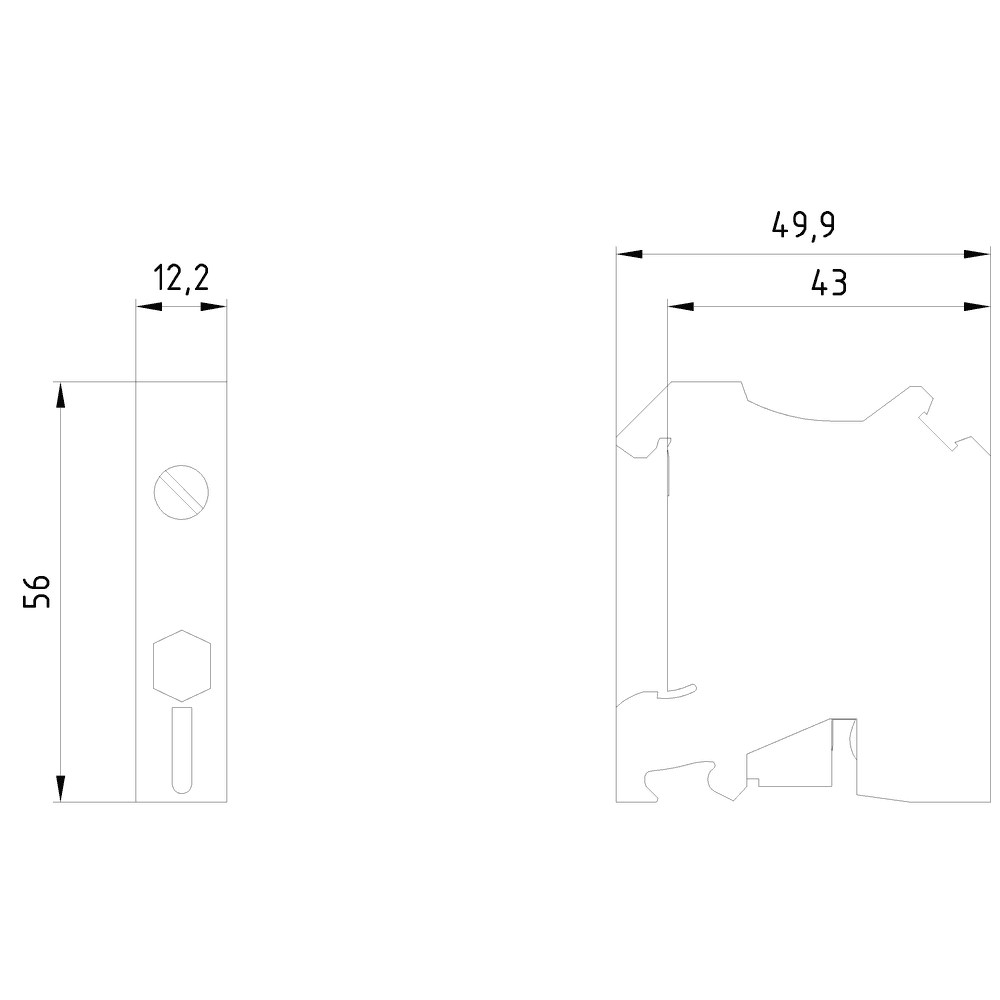

Dimensions
Height49.9 mm
Depth12.2 mm
Other
colorblue
length56 mm
busbar design3x10 mm
stripped length12 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialPA
product designationTerminal blocks
design of the productN-conductor isolating terminal
terminal contact spacing12 mm
number of terminal points2
operating voltage rated value400 V
type of electrical connectionscrew terminal
material of the insulating bodyPA
operational current rated value76 A
height with lowest-profile installation50.5 mm
combustibility class according to UL 94V2
product component required end cover plateYes
