Aktif
Terminal
Nomor Part: 8WH1020-5LF00
Kategori
Component terminal block

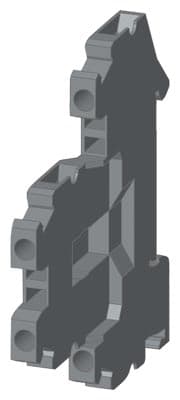

Siemens 8WH1020-5LF00. Terminal, screw terminal, two-tier, diode terminal unequipped, 2.5 mm², gray.
Spesifikasi
Mechanical
Net Weight16 g
Dimensions
Depth64.3 mm
Other
colorgrey
length70 mm
stripped length9 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialPA
product designationTerminal blocks
type of connection 1screw terminals
type of connection 2screw terminals
design of the productdiode terminal
position of the terminalside
terminal contact spacing5.2 mm
number of terminal levels2
operating voltage rated value500 V
material of the insulating bodyPA
height with lowest-profile installation69.9 mm
combustibility class according to UL 94V0
product component required end cover plateYes
number of terminal points per terminal level2
design of terminal terminal levels internally linkedNo
