colorgreen-yellow
length48 mm
stripped length10 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialPA

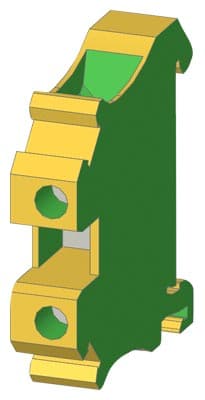

product designationTerminal blocks
type of connection 1screw-type terminal
type of connection 2screw-type terminal
design of the productPE through-type terminal
position of the terminallateral
terminal contact spacing10.2 mm
number of terminal levels1
product feature PEN functionNo
material of the insulating bodyPA
height with lowest-profile installation47.5 mm
combustibility class according to UL 94V0
product component required end cover plateYes
number of terminal points per terminal level2
