colororange
length48 mm
product versionaccessories
fastening methodTH35 DIN rail
product brand nameSENTRON

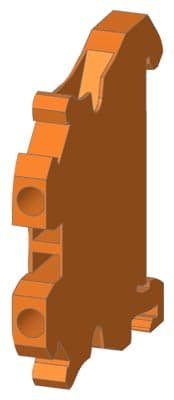

product designationTerminal blocks
type of connection 1screw-type terminal
type of connection 2screw-type terminal
design of the productthrough-type terminal
position of the terminallateral
terminal contact spacing5 mm
number of terminal levels1
operating voltage rated value1 000 V
material of the insulating bodyPA
operational current rated value24 A
height with lowest-profile installation47.5 mm
combustibility class according to UL 94V0
product component required end cover plateYes
number of terminal points per terminal level2
design of terminal terminal levels internally linkedNo
