Terminal
Nomor Part: 8WH1000-0AF00
Kategori
Feed-through terminal block

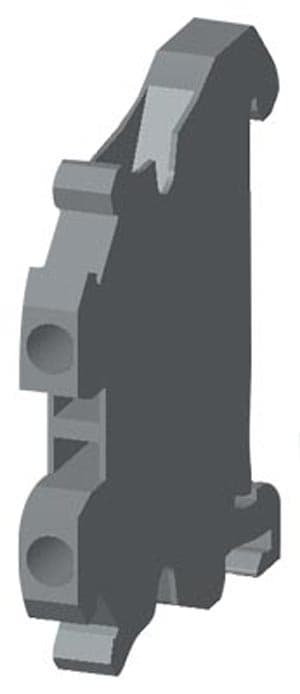

Siemens 8WH1000-0AF00. Terminal, screw terminal, through-type terminal, 2.5 mm², gray.
Spesifikasi
Mechanical
Net Weight8 g
Dimensions
Height48 mm
Depth46.9 mm
Other
colorgrey
length48 mm
product versionthrough-type terminal, for mounting on mounting rail acc. to IEC 60715
fastening methodTH35 DIN rail
product brand nameSENTRON
product designationTerminal blocks
type of connection 1screw-type terminal
type of connection 2screw-type terminal
design of the productthrough-type terminal
position of the terminallateral
terminal contact spacing5 mm
number of terminal levels1
operating voltage rated value1 000 V
material of the insulating bodyPA
operational current rated value24 A
height with lowest-profile installation47.5 mm
combustibility class according to UL 94V0
product component required end cover plateYes
number of terminal points per terminal level2
design of terminal terminal levels internally linkedNo
