Aktif
Busbar L1-3
Nomor Part: 8LK4002-6AA86
Kategori
Busbar system for distribution boards

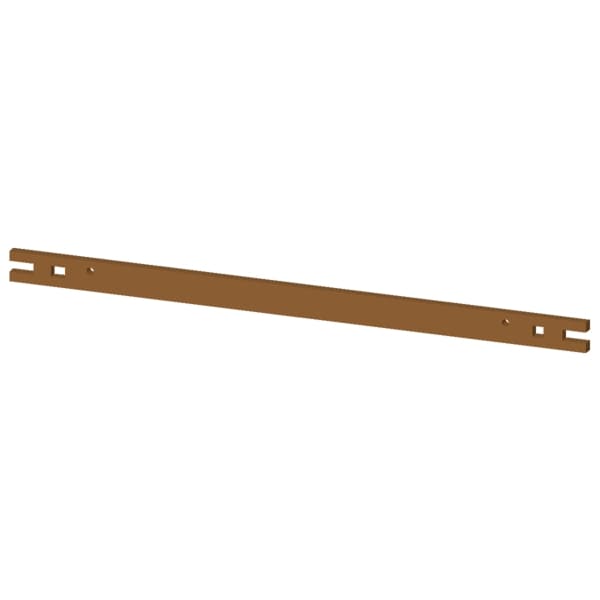

Siemens 8LK4002-6AA86. Busbar L1-3, 30 x 10 mm, W: 600 mm.
Spesifikasi
Mechanical
Net Weight1.476 kg
Dimensions
Width600 mm
Height30 mm
Depth10 mm
Other
mounting height30 mm
number of poles1
installation width600 mm
product brand nameALPHA 3200 Eco
width of the busbar30 mm
design of the productPotential: L1-3
installation locationmain busbar
type of busbar profilebare
position of main busbarRear
thickness of the busbar10 mm
short-circuit current rating35 kA
busbar center-to-center spacing185 mm
operational current rated value940 A
