Busbar L1-3
Nomor Part: 8LK4002-6AA74
Kategori
Busbar system for distribution boards

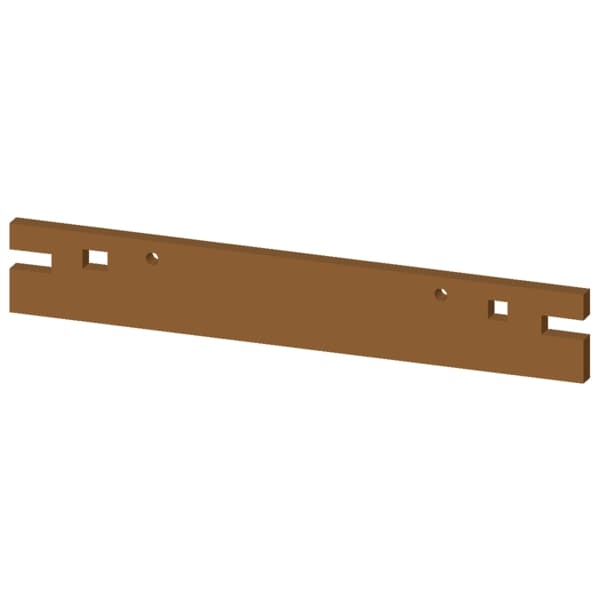

Siemens 8LK4002-6AA74. Busbar L1-3, 50 x 10 mm, W: 350 mm.
Spesifikasi
Mechanical
Net Weight1.431 kg
Dimensions
Width350 mm
Height50 mm
Depth10 mm
Other
mounting height50 mm
number of poles1
installation width350 mm
product brand nameALPHA 3200 Eco
width of the busbar50 mm
design of the productPotential: L1-3
installation locationmain busbar
type of busbar profilebare
position of main busbarRear
thickness of the busbar10 mm
short-circuit current rating40 kA
busbar center-to-center spacing185 mm
operational current rated value1 290 A
