Aktif
Busbar L1-3
Nomor Part: 8LK4002-6AA84
Kategori
Busbar system for distribution boards

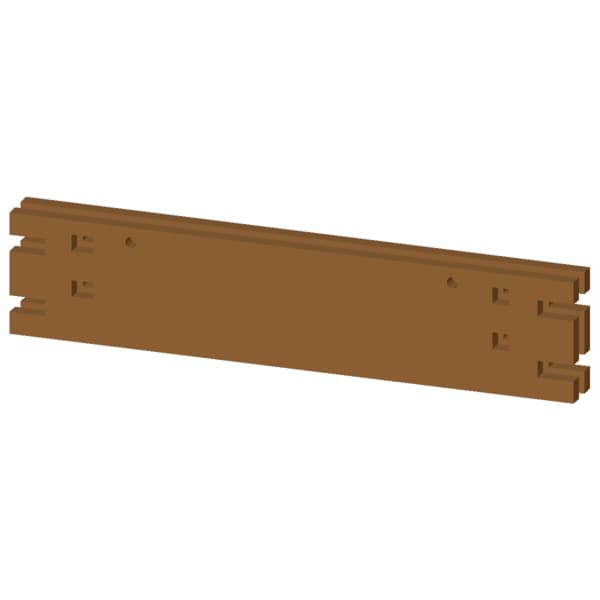

Siemens 8LK4002-6AA84. Busbar L1-3, 2 x 80 x 10 mm, W: 400 mm.
Spesifikasi
Mechanical
Net Weight5.121 kg
Dimensions
Width400 mm
Height80 mm
Depth30 mm
Other
mounting height80 mm
number of poles1
installation width400 mm
product brand nameALPHA 3200 Eco
width of the busbar80 mm
design of the productPotential: L1-3
installation locationmain busbar
type of busbar profilebare
position of main busbarRear
thickness of the busbar10 mm
short-circuit current rating65 kA
busbar center-to-center spacing185 mm
operational current rated value2 610 A
