Aktif

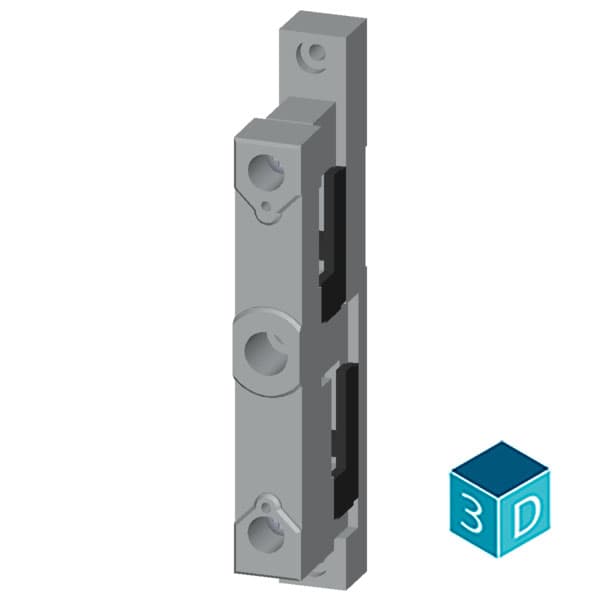

ALPHA 400/630/1250 DIN busbar support 2-pole
Nomor Part: 8GK9710-0KK01
Merek
Kategori
Busbar support
Siemens 8GK9710-0KK01. ALPHA 400/630/1250 DIN busbar support 2-pole, 60 mm system for busbar width 12 mm, 15 mm, 20 mm, 25 mm, 30 mm busbar thicknesses 5 mm and 10 mm incl. fixing screws.
Spesifikasi
Mechanical
Net Weight151 g

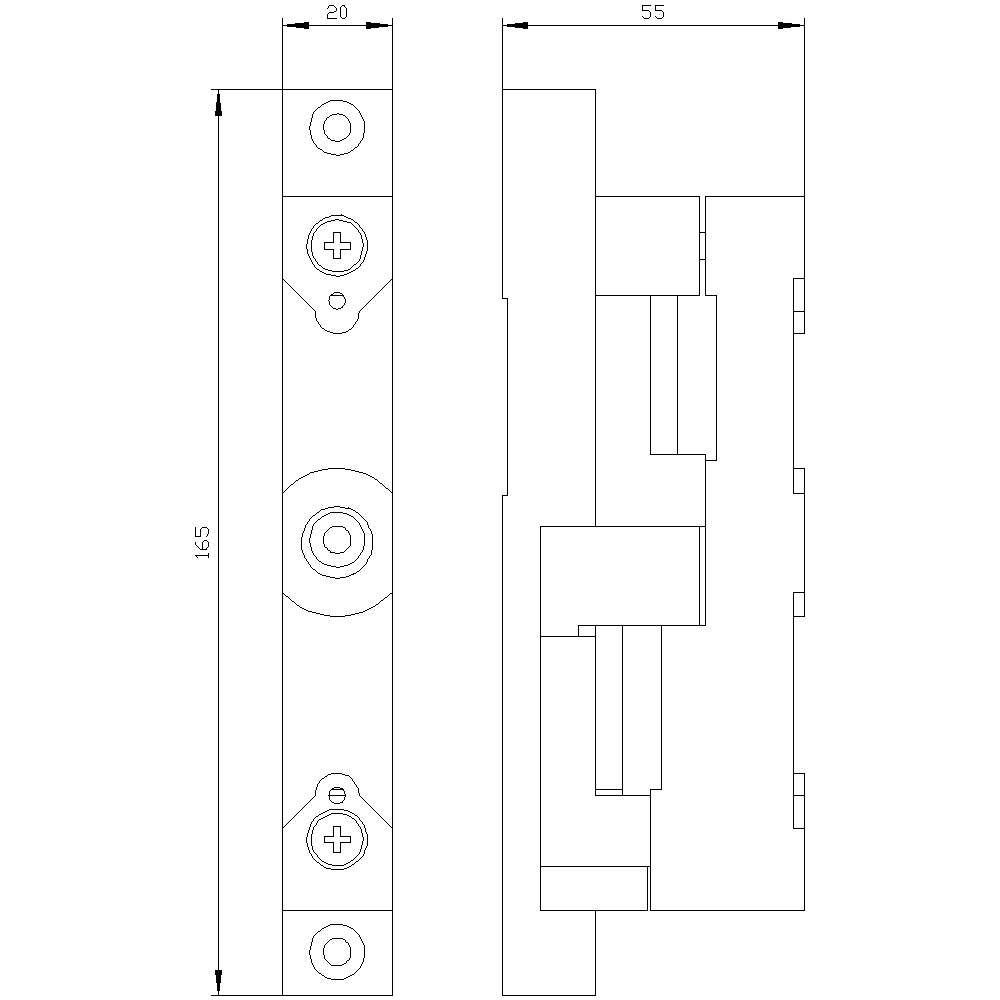

Dimensions
Width20 mm
Height164 mm
Depth50 mm
Other
number of poles2
product brand nameALPHA
product designationbusbar support
design of the productFor Cu 12, 15, 20, 30 x 5, 11
busbar center-to-center spacing60 mm
operational current rated value maximum630 A
