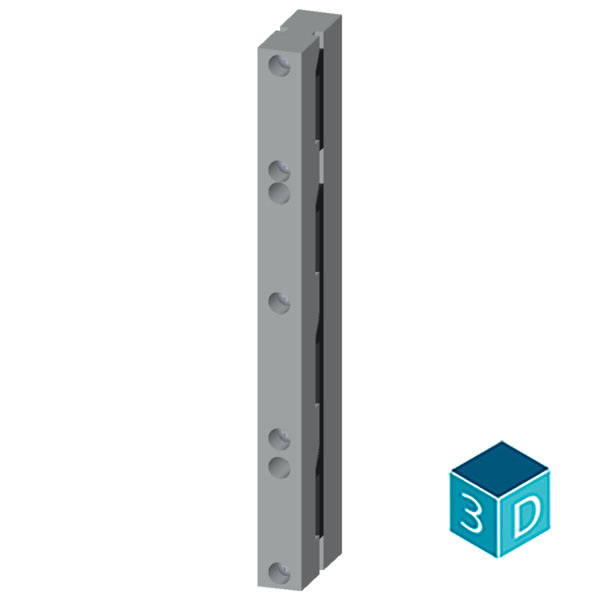

ALPHA 400/630/1250 DIN busbar support 4-pole
Nomor Part: 8GK9670-0KK00
Merek
Kategori
Busbar support
Siemens 8GK9670-0KK00. ALPHA 400/630/1250 DIN busbar support 4-pole, 60 mm system mounting directly on stay for busbar width 12 mm, 15 mm, 20 mm, 25 mm, 30 mm busbar thicknesses 5 mm and 10 mm.
Spesifikasi
Mechanical
Net Weight259 g

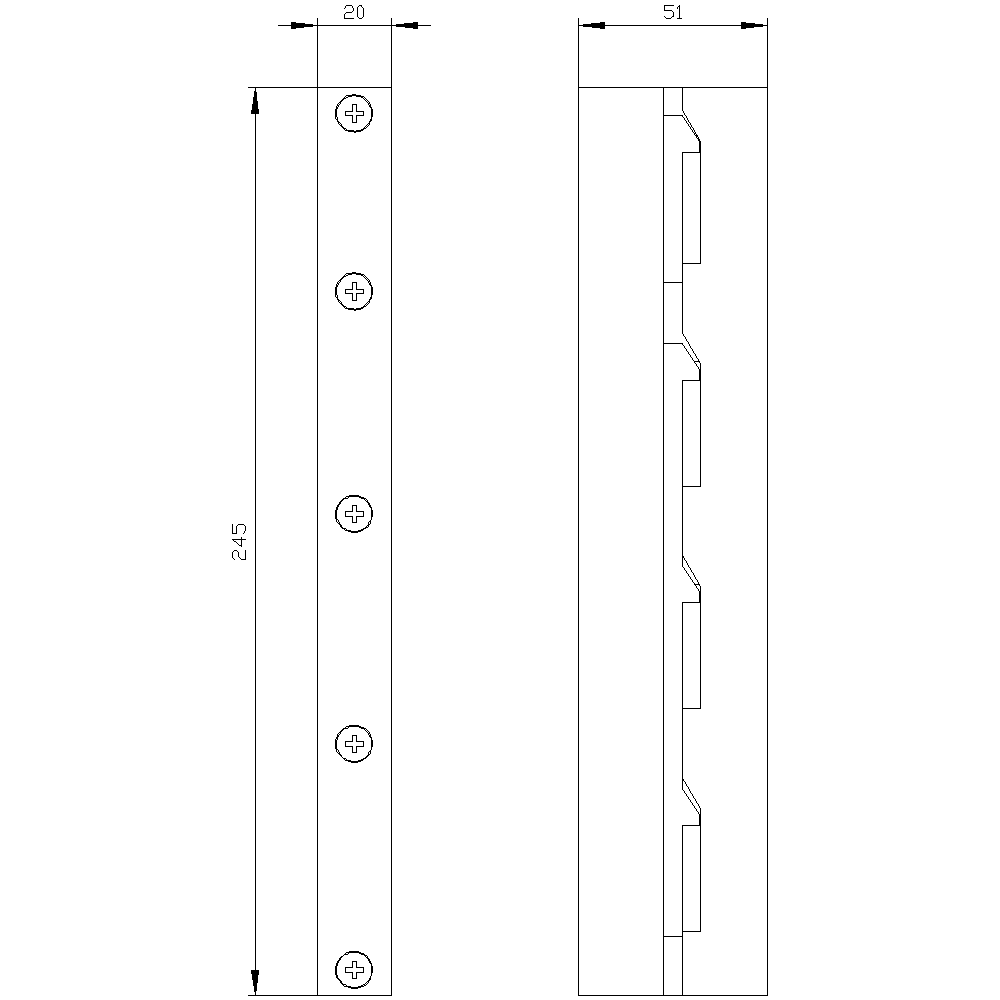

Dimensions
Width21 mm
Height272 mm
Depth51 mm
Other
number of poles4
product brand nameALPHA
product designationbusbar support
design of the productFor Cu 12, 20, 30 x 5, 12
busbar center-to-center spacing60 mm
operational current rated value maximum630 A
