ALPHA 400 DIN spare part door
Nomor Part: 8GK9510-8KK37
Kategori
Door/operating panel (enclosure/cabinet)

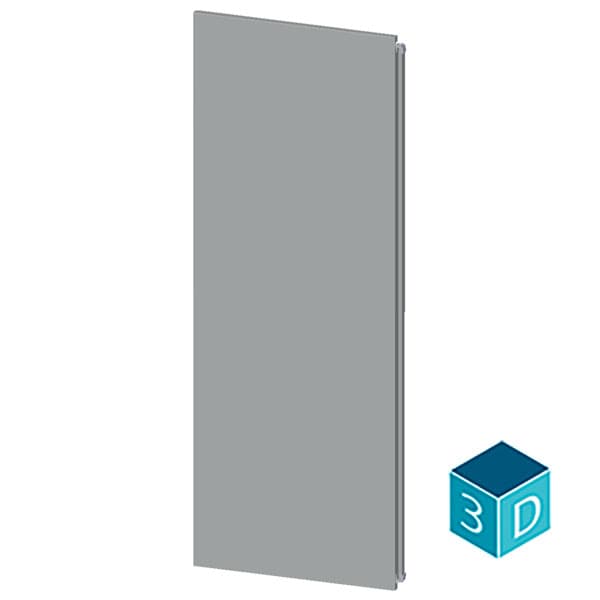

Siemens 8GK9510-8KK37. ALPHA 400 DIN spare part door, door half, left H = 1400 mm, W = 525 mm IP43, IP44, IP55, RAL 9016, protection class 1 and 2.
Spesifikasi
Mechanical
Net Weight8 085 g

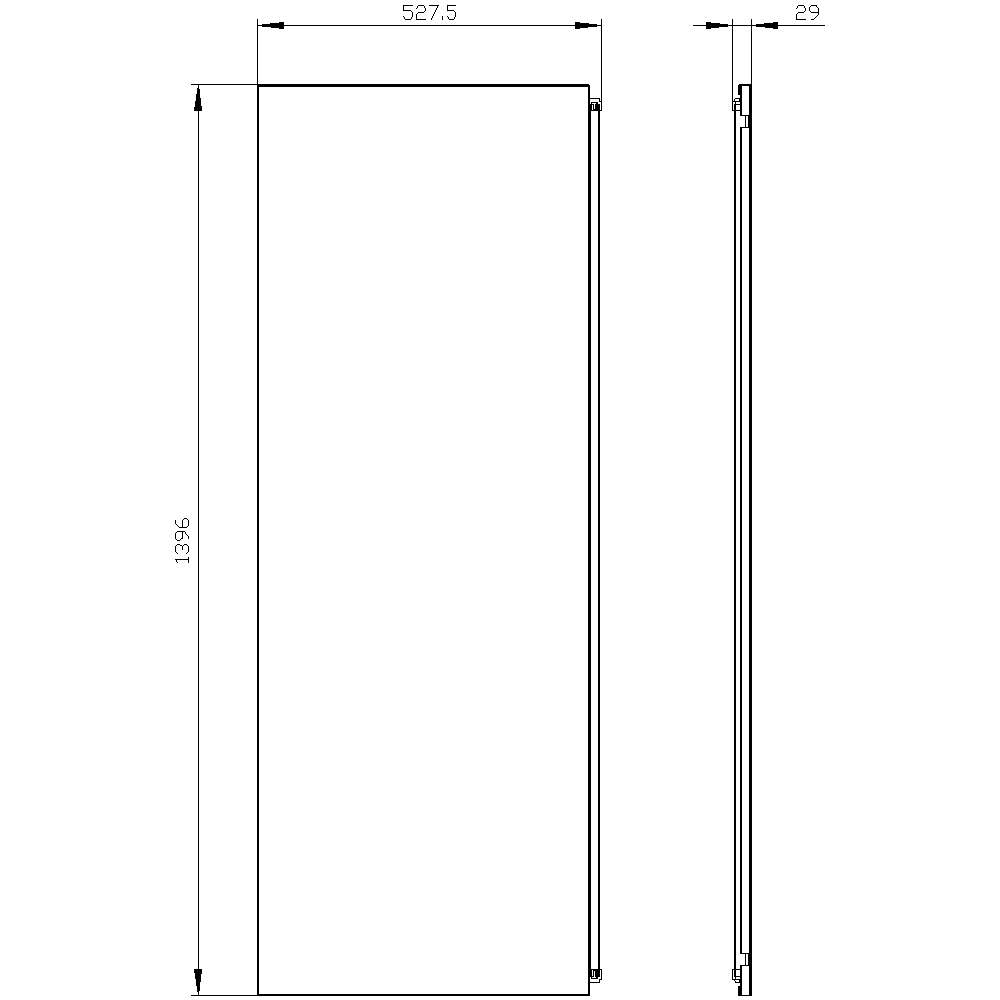

Dimensions
Width525 mm
Height1 400 mm
Other
colorTraffic white
materialsteel
product brand nameALPHA
product designationDoor half
protection class IPIP55
design of the productClosed
design of the surfacePowder-coated
opening direction of the doorleft
design of the product EMC versionNo
operating resource protection classSafety class 1 and 2
