ALPHA 160/400 DIN spare part door
Nomor Part: 8GK9510-7KK32
Kategori
Door/operating panel (enclosure/cabinet)

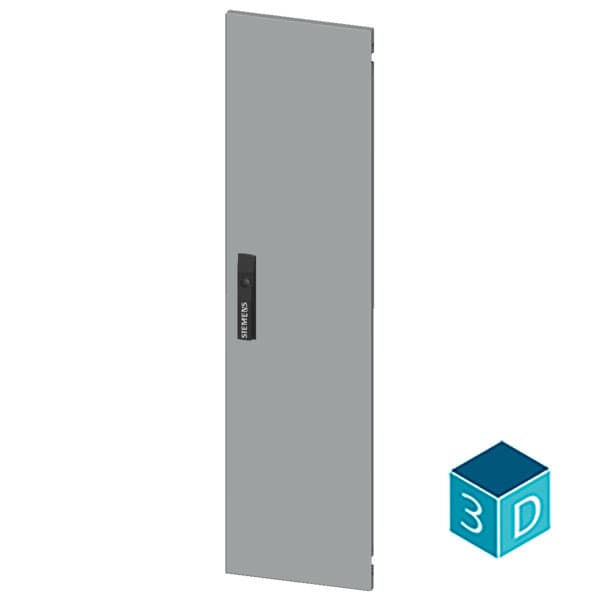

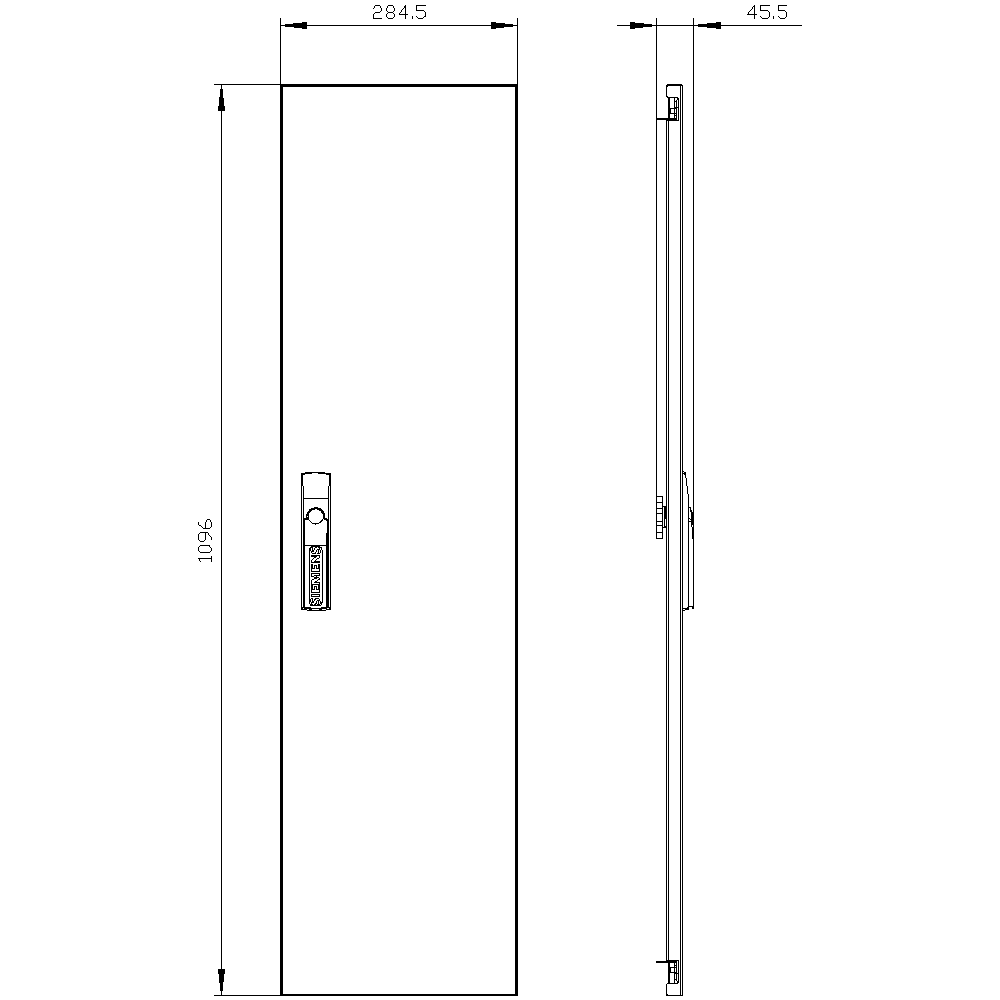

Siemens 8GK9510-7KK32. ALPHA 160/400 DIN spare part door, door half, right H = 1100 mm, W = 275 mm IP43, IP44, IP55, RAL 9016, protection class 1 and 2 including rotary handle.
Spesifikasi
Mechanical
Net Weight4.378 kg
Dimensions
Width275 mm
Height1 100 mm
Other
colorTraffic white
materialsteel
product brand nameALPHA
product designationDoor half
protection class IPIP55
accessories includedincl. rotary handle
design of the productClosed
design of the surfacePowder-coated
opening direction of the doorright
design of the product EMC versionNo
operating resource protection classSafety class 1 and 2
