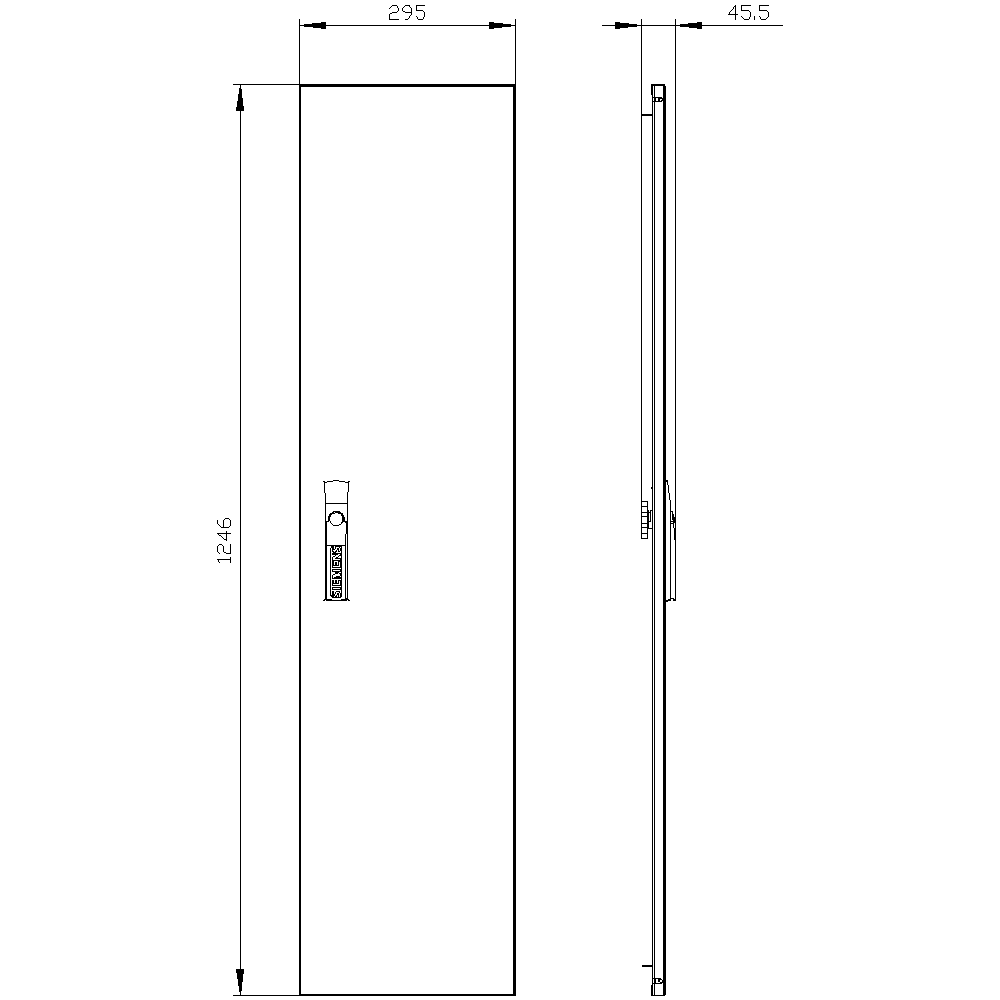

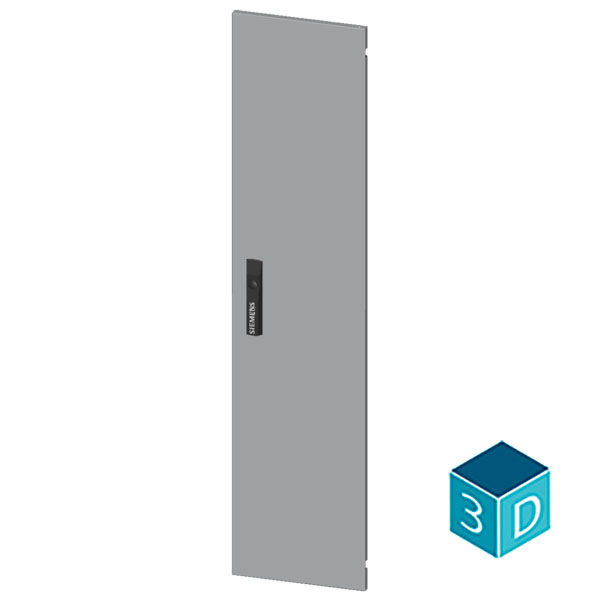

ALPHA 400 DIN spare part door H = 1250 mm
Nomor Part: 8GK9510-8KK10
Kategori
Door/operating panel (enclosure/cabinet)
Siemens 8GK9510-8KK10. ALPHA 400 DIN spare part door H = 1250 mm, W = 300 mm IP43, IP44, IP55, RAL 9016, protection class 1 and 2 including rotary handle.
Spesifikasi
Mechanical
Net Weight4.9 kg
Dimensions
Width300 mm
Height1 250 mm
Other
colorTraffic white
materialsteel
product brand nameALPHA
product designationDoor
protection class IPIP55
accessories includedincl. rotary handle
design of the productClosed
design of the surfacePowder-coated
opening direction of the doorright
design of the product EMC versionNo
operating resource protection classSafety class 1 and 2
