ALPHA 160/400 DIN spare part door
Nomor Part: 8GK9510-7KK42
Merek
Kategori
Door/operating panel (enclosure/cabinet)

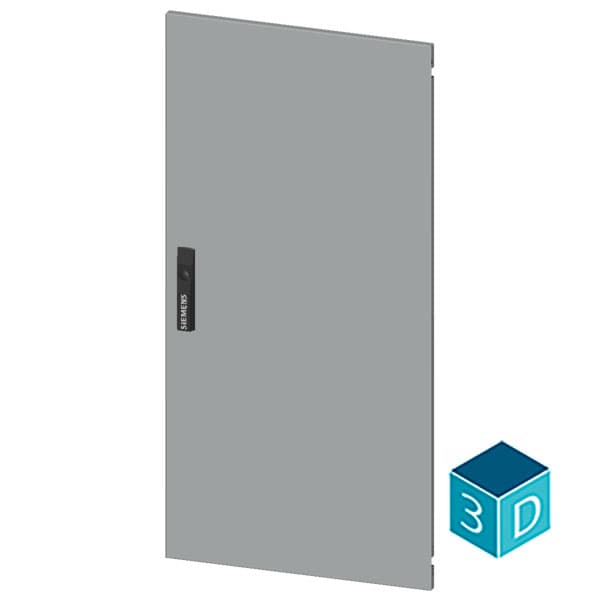

Siemens 8GK9510-7KK42. ALPHA 160/400 DIN spare part door, door half, right H = 1100 mm, W = 525 mm IP43, IP44, IP55, RAL 9016, protection class 1 and 2 including rotary handle.
Spesifikasi
Mechanical
Net Weight6.446 kg

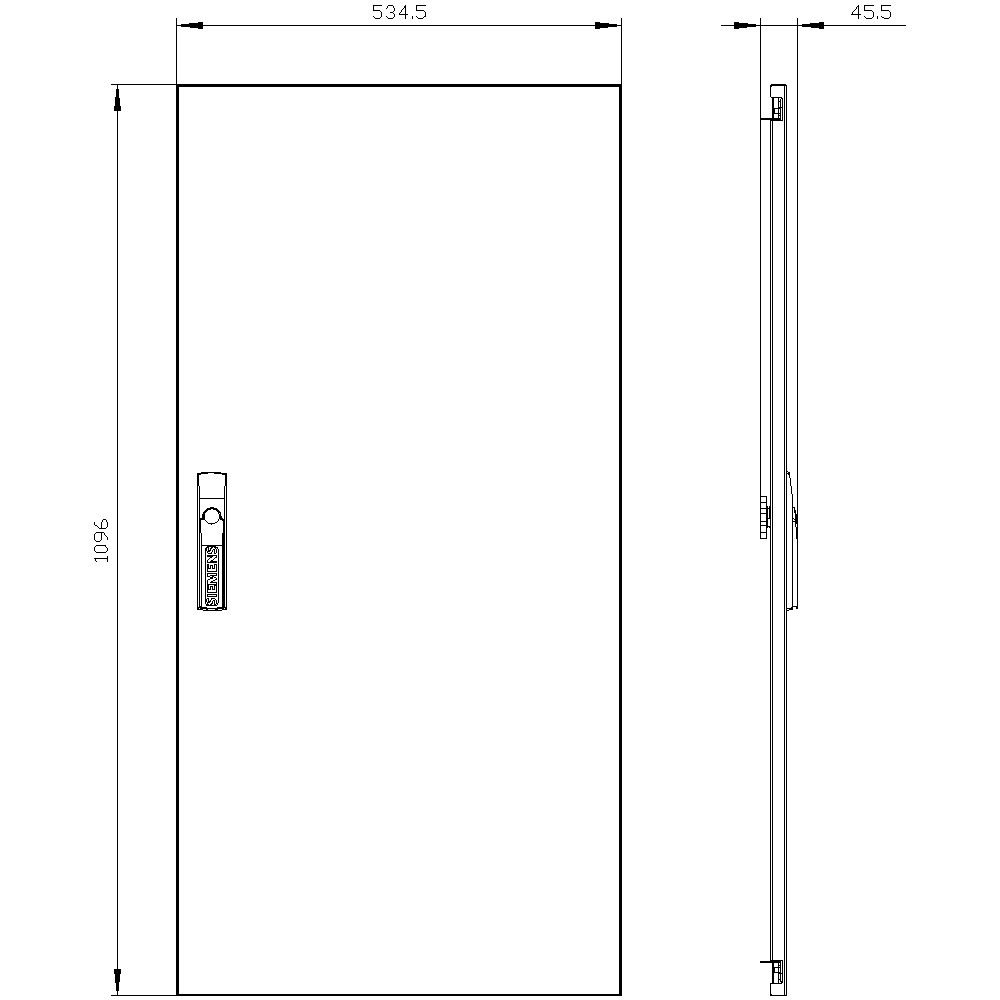

Dimensions
Width525 mm
Height1 100 mm
Other
colorTraffic white
materialsteel
product brand nameALPHA
product designationDoor half
protection class IPIP55
accessories includedincl. rotary handle
design of the productClosed
design of the surfacePowder-coated
opening direction of the doorright
