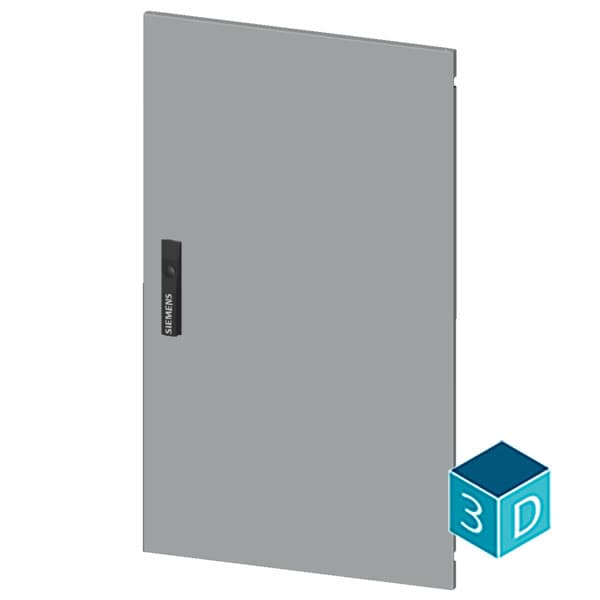

ALPHA 160/400 DIN spare part door H = 950 mm
Nomor Part: 8GK9510-6KK20
Kategori
Door/operating panel (enclosure/cabinet)

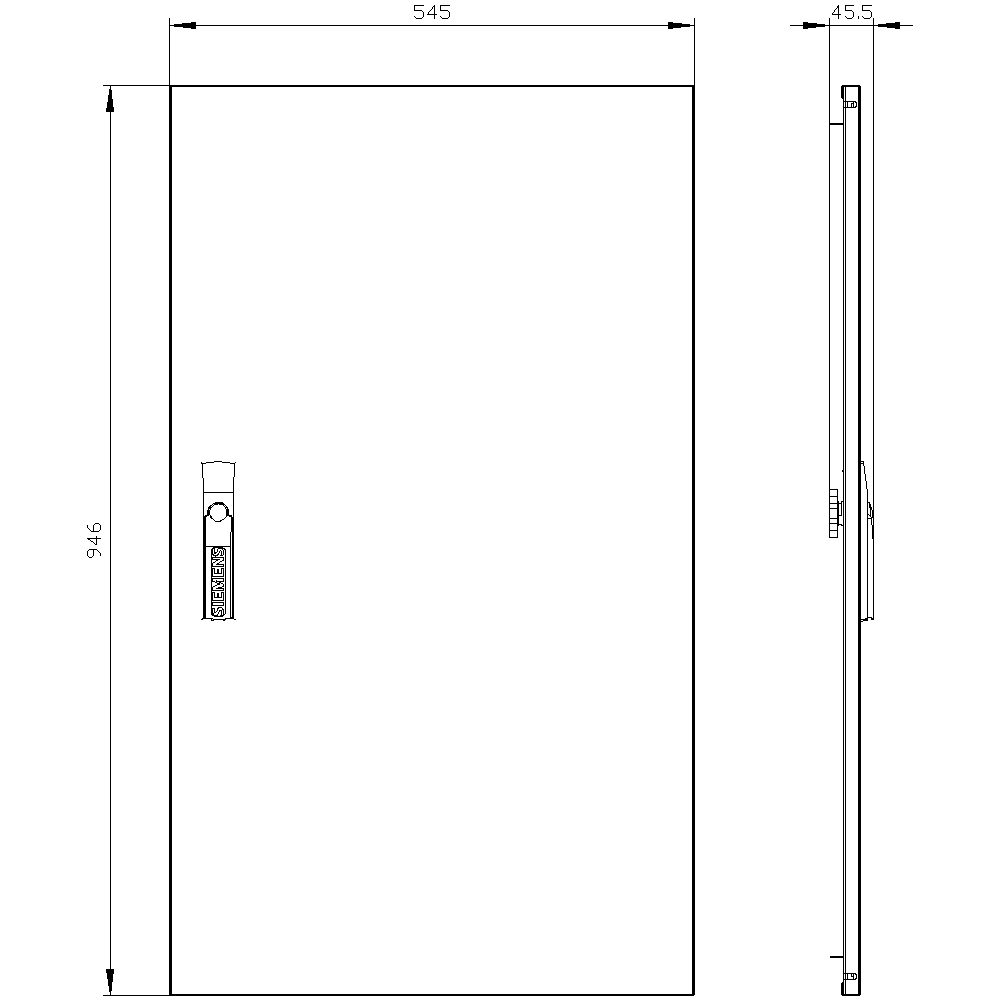

Siemens 8GK9510-6KK20. ALPHA 160/400 DIN spare part door H = 950 mm, W = 550 mm IP43, IP44, IP55, RAL 9016, protection class 1 and 2 including rotary handle.
Spesifikasi
Mechanical
Net Weight5 621 g
Dimensions
Width550 mm
Height950 mm
Other
colorTraffic white
materialsteel
product brand nameALPHA
product designationDoor
protection class IPIP55
accessories includedincl. rotary handle
design of the productClosed
design of the surfacePowder-coated
opening direction of the doorright
design of the product EMC versionNo
operating resource protection classSafety class 1 and 2
