Aktif
ALPHA 160
Nomor Part: 8GK1031-1KK11
Kategori
Empty cabinet

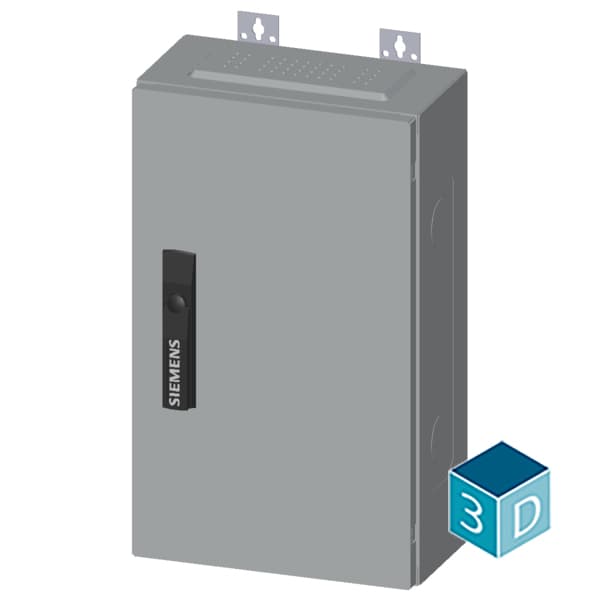

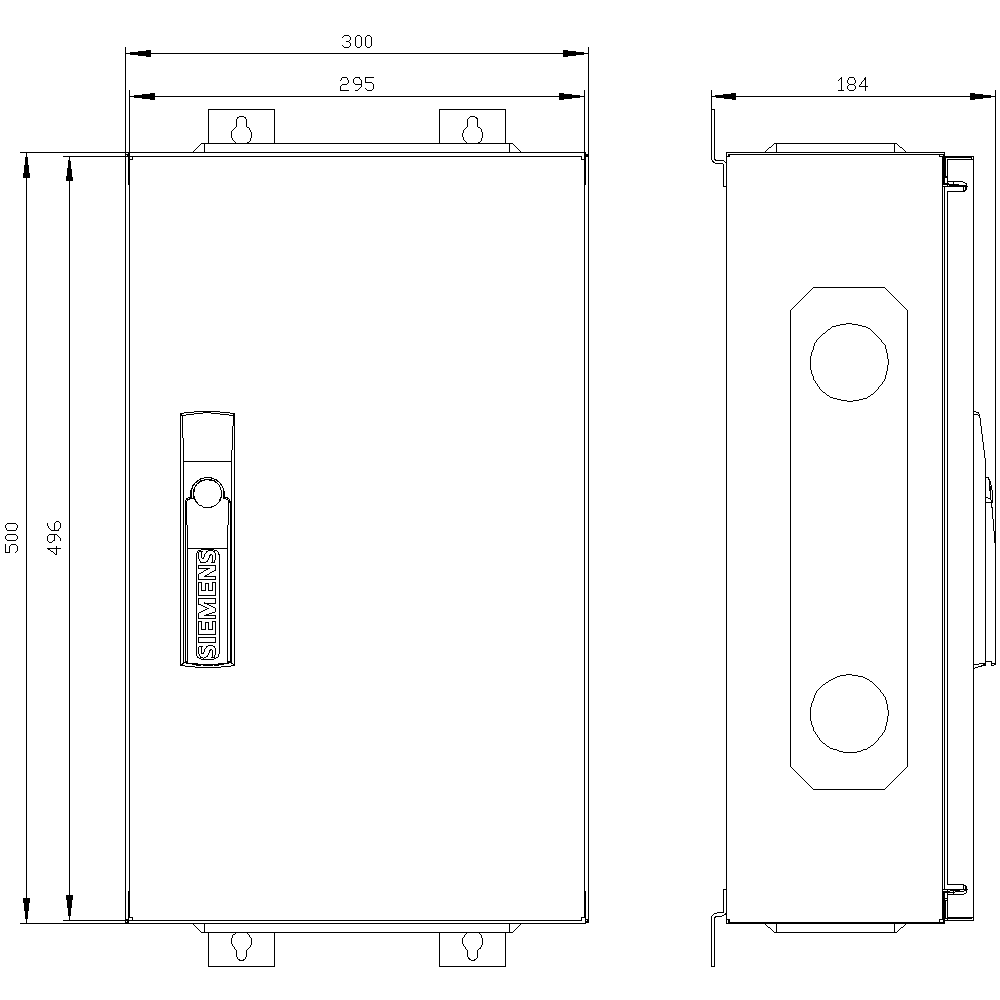

Siemens 8GK1031-1KK11. ALPHA 160, wall-mounted cabinet, Flush-mounting, IP31, type of protection 2, H: 500 mm, W: 300 mm, T: 140 mm, RAL 9016.
Spesifikasi
Mechanical
Net Weight7.2 kg
Dimensions
Width312 mm
Height513 mm
Depth140 mm
Other
number of rows3
fastening methodflush mounting
RAL color number9 016
installation depth140 mm
product brand nameALPHA
surface processingpowder-coated
IK protection classIK08
product designationWall-mounted cabinet
protection class IPIP31
design of the productFlush mounting
material of the enclosureSteel
number of modular width units36
operating resource protection classSafety class 2
suitability for use for outside useNo
product extension optional side-by-side mountingNo
suitability for interaction lightning protectionYes
number of modular width units per DIN mounting bar12
