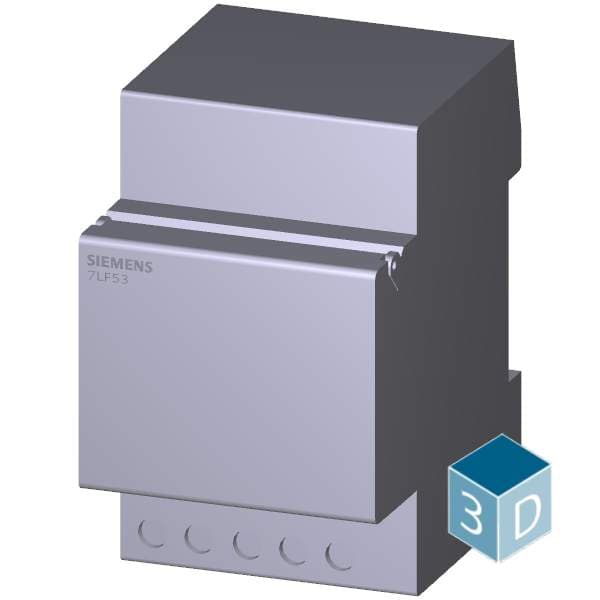

Synchronous time switch Day 1 change-over contact 230V/50Hz 3 MW
Nomor Part: 7LF5300-5
Kategori
Analogous time switch for distribution board
Siemens 7LF5300-5. Synchronous time switch Day 1 change-over contact 230V/50Hz 3 MW.
Spesifikasi
Mechanical
Net Weight147 g

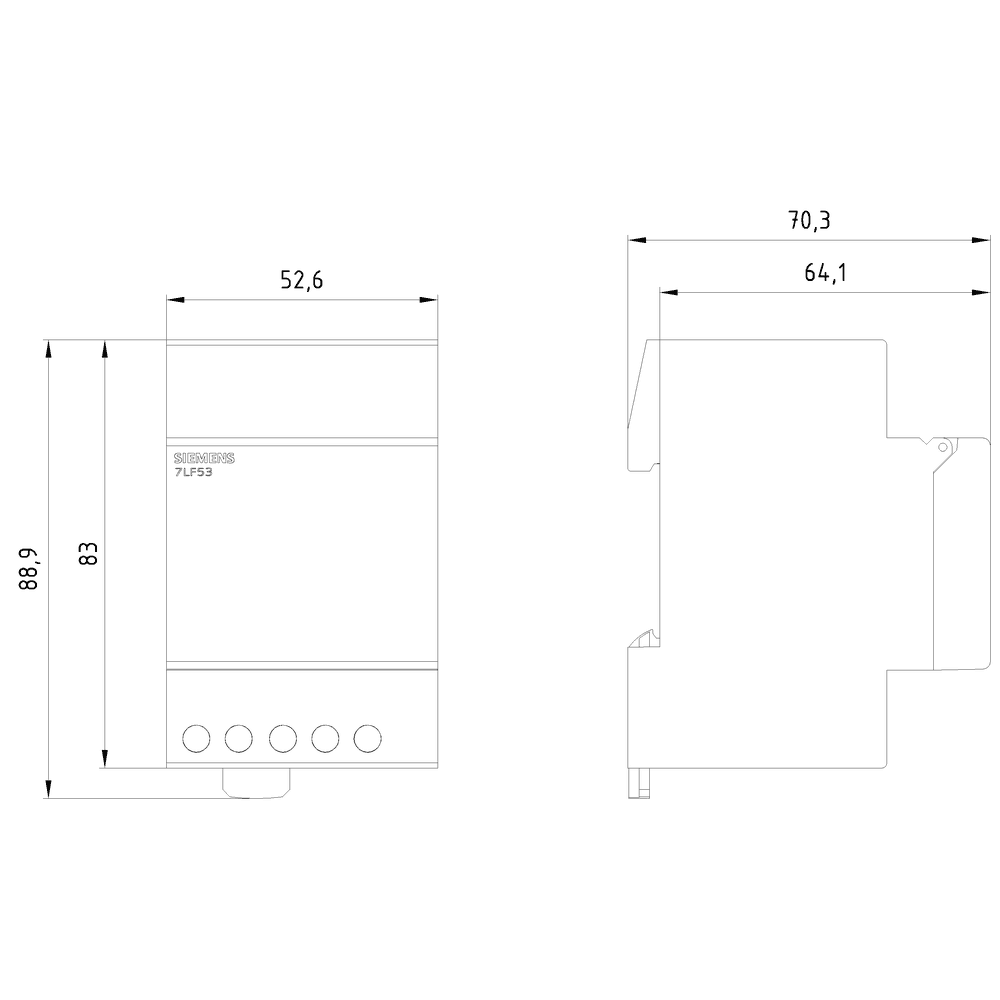

Dimensions
Width53 mm
Height83 mm
Depth64 mm
Other
fastening methodDIN rail
number of channels1
product brand nameSENTRON
product designationMechanical time switch
protection class IPIP20
design of the productDay
supply voltage initial value230 V
number of modular width units3
supply voltage full-scale value230 V
design of the switching functionCO contact
type of voltage of the supply voltageAC
principle of operation line-synchronousYes
principle of operation quartz-controlledNo
product feature floating switching contactYes
shortest switching time interval of channel 130 min
switching capacity current at AC at 250 V rated value16 A
power loss [W] for rated value of the current at AC in hot operating state per pole1 W
