fastening methodDIN rail
number of channels1
product brand nameSENTRON

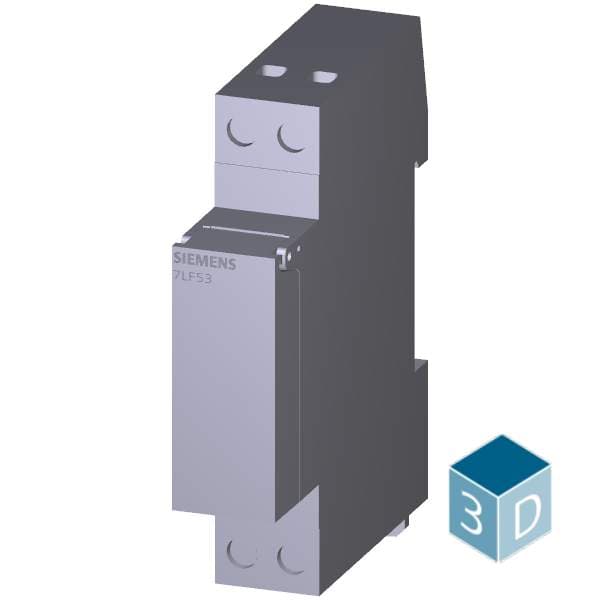

product designationMechanical time switch
protection class IPIP20
design of the productDay
supply voltage initial value230 V
number of modular width units1
supply voltage full-scale value230 V
design of the switching functionNO contact
type of voltage of the supply voltageAC
principle of operation line-synchronousYes
principle of operation quartz-controlledNo
product feature floating switching contactYes
shortest switching time interval of channel 130 min
switching capacity current at AC at 250 V rated value16 A
power loss [W] for rated value of the current at AC in hot operating state per pole1 W
