Aktif

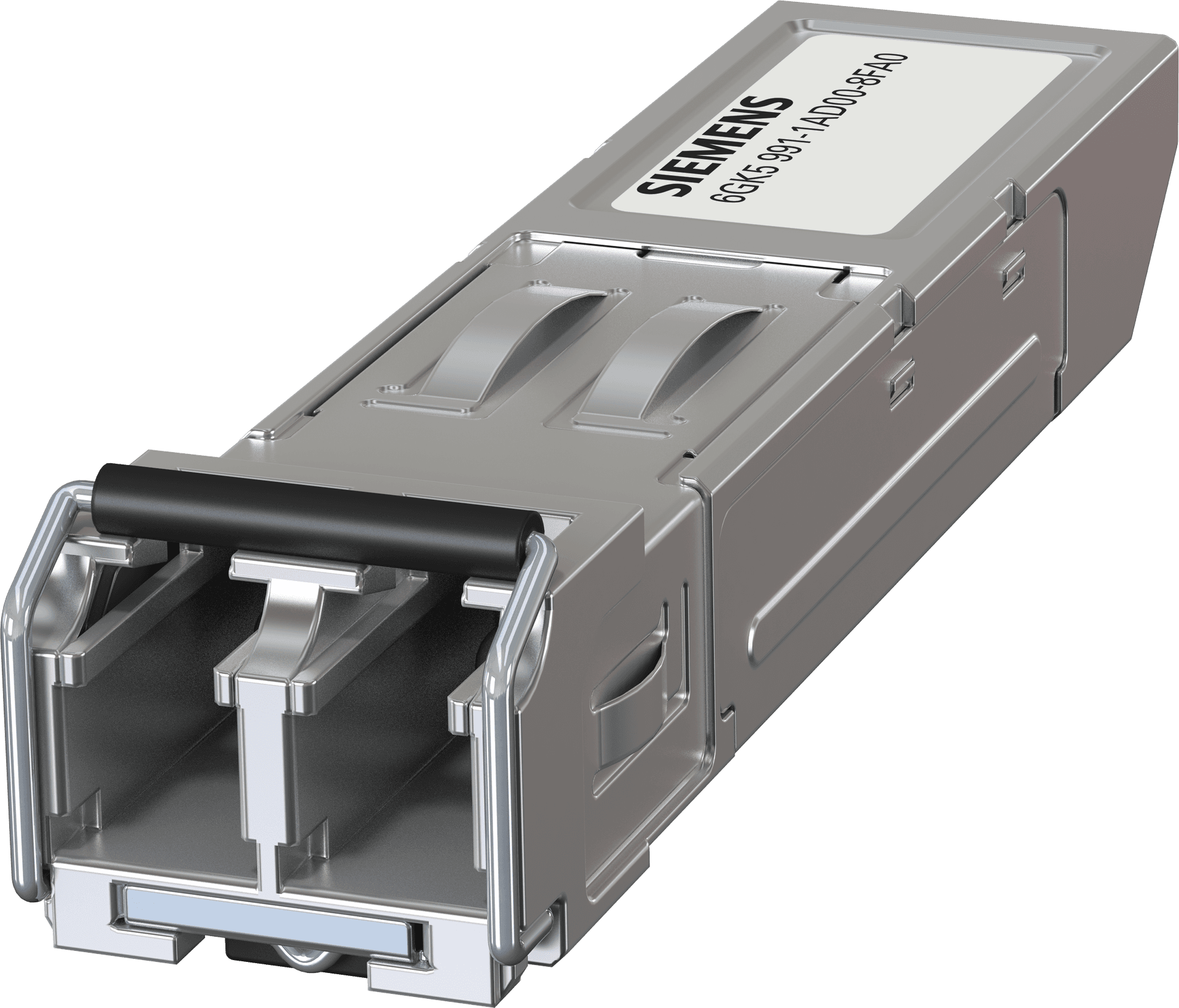

SCALANCE X accessory; Plug-in transceiver SFP991-1 with Conformal Coating; 1x 100 Mbit/s LC port
Nomor Part: 6GK5991-1AD00-8FA0
Kategori
System interface/media gateway for bus system
Siemens 6GK5991-1AD00-8FA0. SCALANCE X accessory; Plug-in transceiver SFP991-1 with Conformal Coating; 1x 100 Mbit/s LC port, optical; multimode optical up to max. 5 km..
Spesifikasi
Mechanical
Net Weight0.01 kg

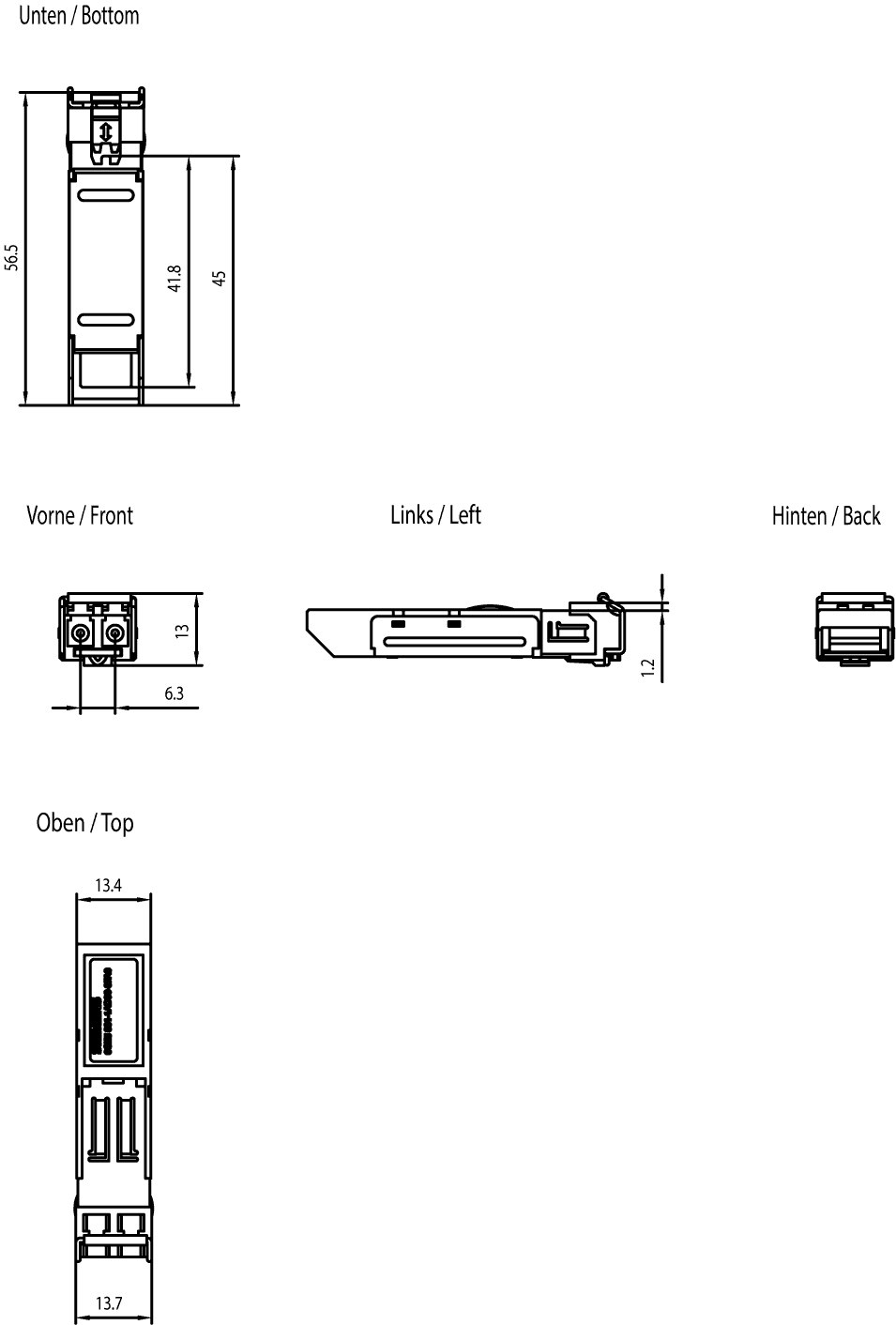

Dimensions
Width14 mm
Height9 mm
Depth57 mm
Other
MTBF490 a
designSFP Module
fastening methodlatched
protection class IPIP20
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
certificate of suitabilityEN 61000-6-2:2005, EN 61000-6-4:2007
number of 100 Mbit/s LC ports1
Environmental Product DeclarationYes
product feature / conformal coatingYes
wavelength / of the optical interface1300 nm; Multi-mode
transmission method / for connection type 1100BASE-FX
attenuation factor / of the FOC transmission link / minimum necessary0 dB
optical sensitivity relating to 1 mW / of the receiver input / minimum-31 dB
range / at the optical interface / depending on the optical fiber used0 ... 5 km
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
design of the optical interface / for network components or terminal equipmentLC
number of optical interfaces / for network components or terminal equipment / maximum1
number of electrical/optical connections / for network components or terminal equipment / maximum1
