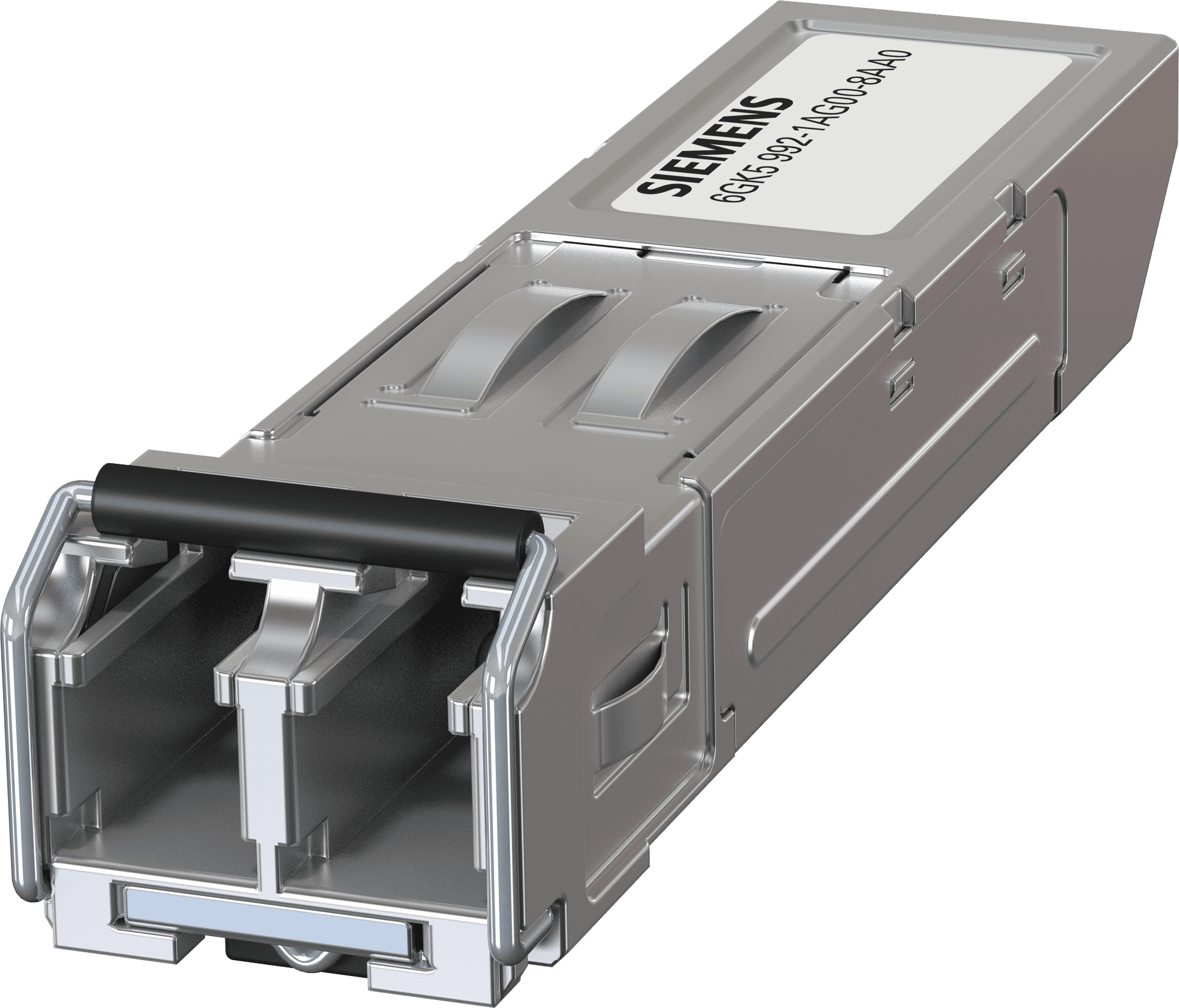

designPlug-in transceiver
fastening methodlatched
protection class IPIP20
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
certificate of suitabilityEN 61000-6-2:2005, EN 61000-6-4:2007
Environmental Product DeclarationYes
wavelength / of the optical interface1310 nm; Multi-mode
transmission method / for connection type 11000BASE-LSX
number of 1000 Mbit/s LC ports / for multimode / integrated1
attenuation factor / of the FOC transmission link / minimum necessary0 dB
optical sensitivity relating to 1 mW / of the receiver input / minimum-19 dB
range / at the optical interface / depending on the optical fiber used1 ... 2 km
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
design of the optical interface / for network components or terminal equipmentLC
number of optical interfaces / for network components or terminal equipment / maximum1
number of electrical/optical connections / for network components or terminal equipment / maximum1
