Aktif

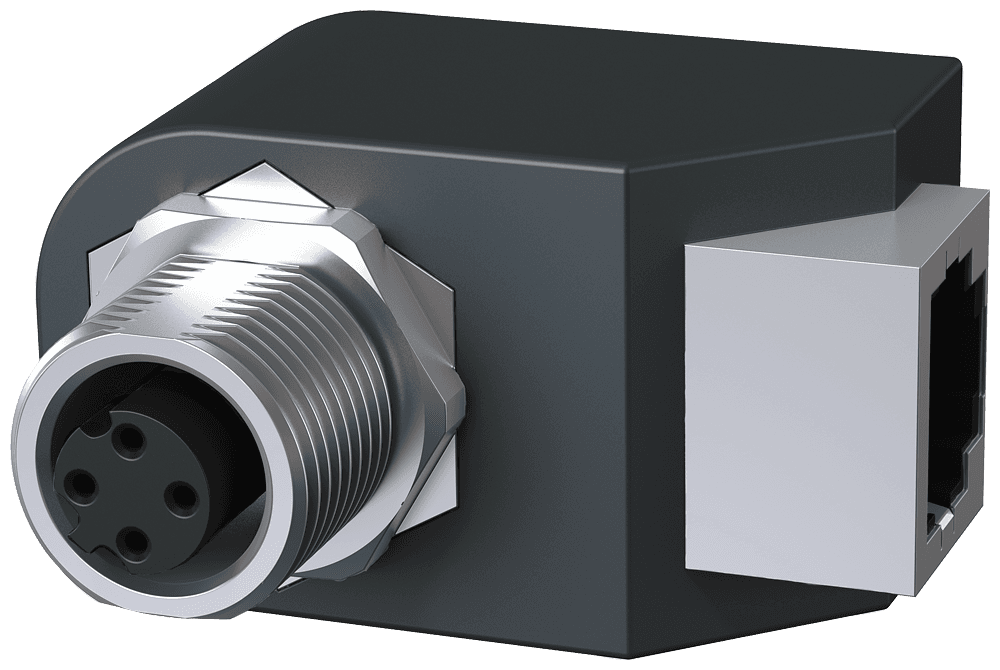

IE M12 panel feedthrough control cabinet bushing to transition from M12 connection (D-coded)- connection method (IP65) on RJ45 connection technology (IP20) 1 pack=5 units.
Nomor Part: 6GK1901-0DM20-2AA5
Kategori
Circular connector for field assembly (industrial connector)
Siemens 6GK1901-0DM20-2AA5. IE M12 panel feedthrough control cabinet bushing to transition from M12 connection (D-coded)- connection method (IP65) on RJ45 connection technology (IP20) 1 pack=5 units..
Spesifikasi
Mechanical
Net Weight40 g

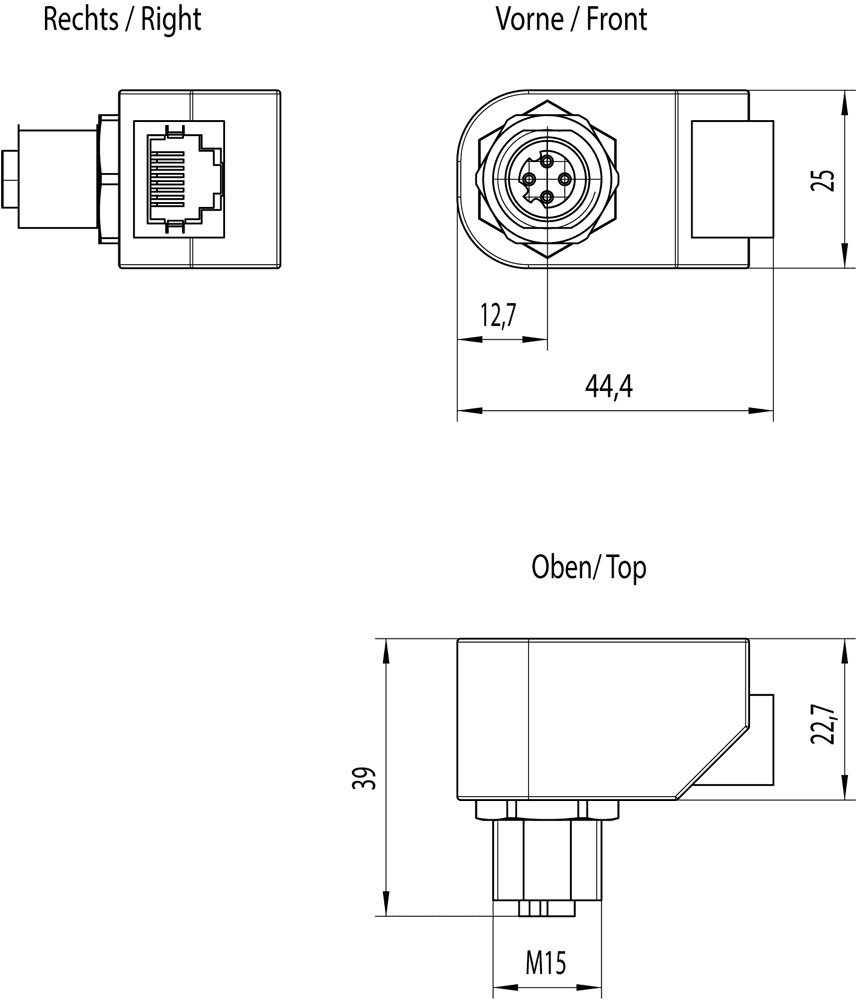

Dimensions
Width24 mm
Height45 mm
Depth35.4 mm
Other
protection class IPIP65/67 (M12), IP20 (RJ45)
suitability for useControl cabinet feedthrough for transition from M12 connection type (D-coded), IP65/67) to RJ45 connection type (IP20)
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
type of cable outlet90° cable outlet
locking mechanism designScrewed joint
material / of the enclosureplastic
standard for structured cablingCat5
transfer rate / for Industrial Ethernet10, 100 Mbit/s
type of electrical connection / FastConnectNo
connector coding / of the M12 circular connectorD
tightening torque / for M12 round connector / maximum0.6 N·m
