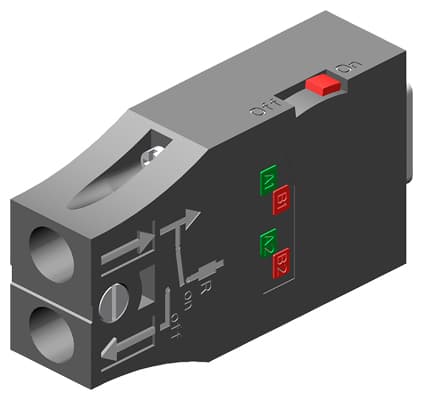

PROFIBUS FC RS 485 plug 180 PROFIBUS connector with FastConnect connection plug and axial cable outlet for Industry PC
Nomor Part: 6GK1500-0FC10
Kategori
Rectangular connector, set (industrial connector)
Siemens 6GK1500-0FC10. PROFIBUS FC RS 485 plug 180 PROFIBUS connector with FastConnect connection plug and axial cable outlet for Industry PC, SIMATIC OP, OLM, Transfer rate: 12 Mbit/s, terminating resistor with isolating function, plastic enclosure..
Spesifikasi
Mechanical
Net Weight40 g

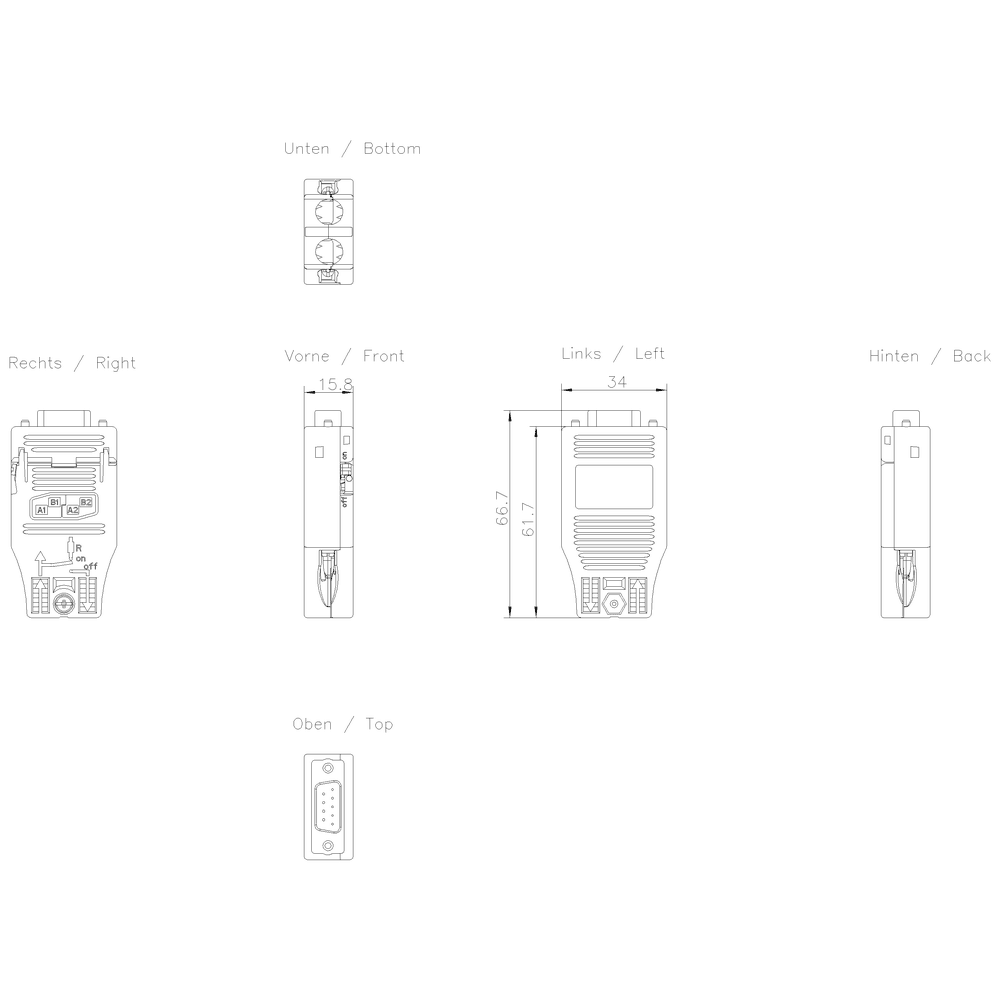

Dimensions
Width16 mm
Height62 mm
Depth34.5 mm
Other
protection class IPIP20
suitability for useFor connecting PROFIBUS nodes to the PROFIBUS bus cable
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
type of cable outlet180° cable outlet
locking mechanism designScrewed joint
material / of the enclosureplastic
transfer rate / with PROFIBUS9.6 kbit/s ... 12 Mbit/s
design of terminating resistorIntegrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated.
Environmental Product DeclarationYes
type of electrical connection / FastConnectYes
