MTBF66 a
colorpetrol blue
range30 ... 250 mm
materialDie-cast aluminum
range / noterange determined and preset by the built-in special lens
accessoriesmounting brackets, built-in ring lights, external ring lights, E-focus lens, C-mount lenses, protective barrels for lenses
display version7 LEDs

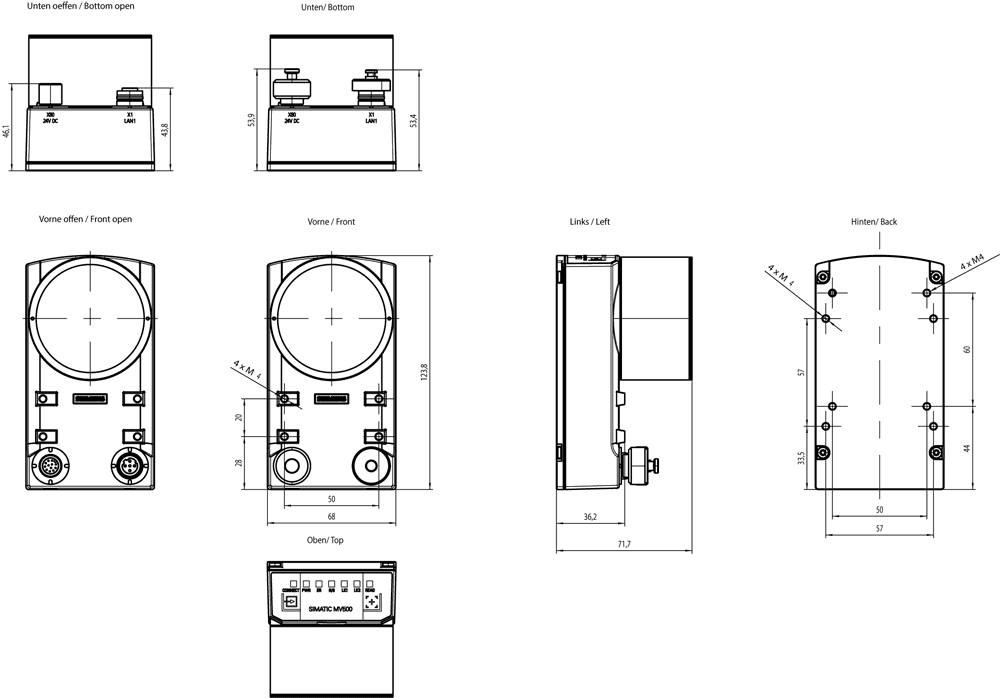

fastening method4 x M4 screws
shock resistanceAccording to IEC 60068-2
type of focusingBased on mounting
shock acceleration300 m/s²
protection class IPIP67
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
type of light sourceIntegrated lighting or external lighting according to accessories list
digital input version1 fast trigger input
type of image captureGlobal shutter with manual or automatic exposure time
digital output version1 fast strobe output, 2 potential-free outputs (NPN- PNP-capable)
fastening method / of lensC-mount lens connection
number of digital inputs1
vibrational acceleration40 m/s²
code reading rate / maximum80 1/s
number of digital outputs3
suitability for operation1D codes: Int. 2/5, Code 128, Code 93, Code 39, Code 32, EAN 13, EAN 8, UPC-A, UPC-E, GS1, Pharmacode, Postnet, 2D codes: DMC, dot code, PDF417 (without: Truncated, Micro and Macro), Q R (without: Micro and Macro), verification uncalibrated
certificate of suitabilityCE, NuG suitable
product feature / silicon-freeYes
Environmental Product DeclarationYes
picture recording frequency / maximum100 Hz
design of image sensor / of the cameraCMOS-Chip, 800 x 600
protocol / is supported / Media Redundancy Protocol (MRP)No
buffering time / in the event of power failure / minimum0.01 s
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
product function / of the PROFINET IO device / is supported / H-Sync forwardingNo
