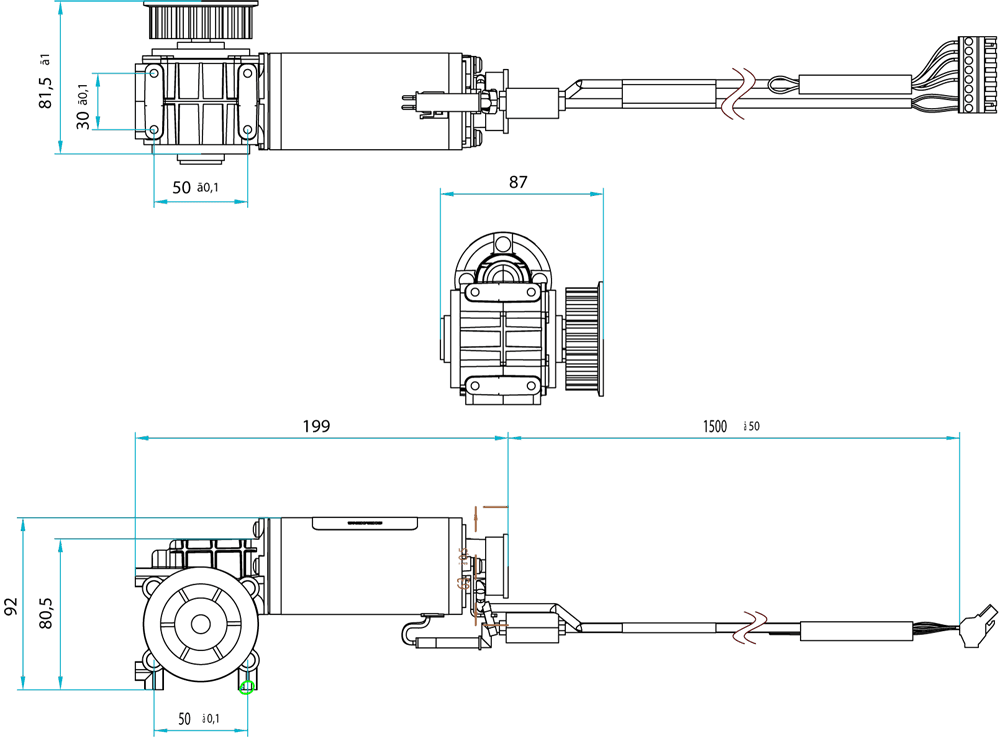

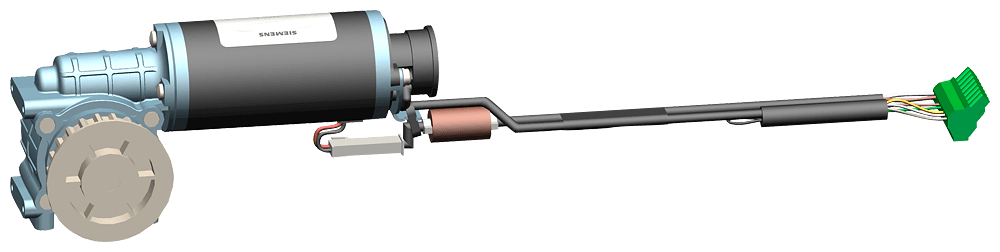

SIDOOR M2 R geared motor
Nomor Part: 6FB1103-0AT11-5MA0
Kategori
Gear motor for door control systems
Siemens 6FB1103-0AT11-5MA0. SIDOOR M2 R geared motor, Pinion, right max. 120kg door weight, Cable length 1.5 m, 24VDC, -20°C to +50°C.
Spesifikasi
Other
CE markYes
Speed, max.0.5 m/s
Gear ratio15
UL approvalNo
Rated value (DC)24 V
Height of motor90 mm
Length of motor207 mm
Diameter of motor48 mm
Active power input43 W
EAC (formerly Gost-R)Yes
Weight of door, max.120 kg
China RoHS complianceYes
Product type designationM2 R
TÜV Inspectorate approvalYes
Operational current (rated value)1.8 A
Number of pulses per revolution, max.100
Width of gear unit, including drive pinion90 mm
Torque of the rotary operating mechanism (rated value)1.05 N·m
