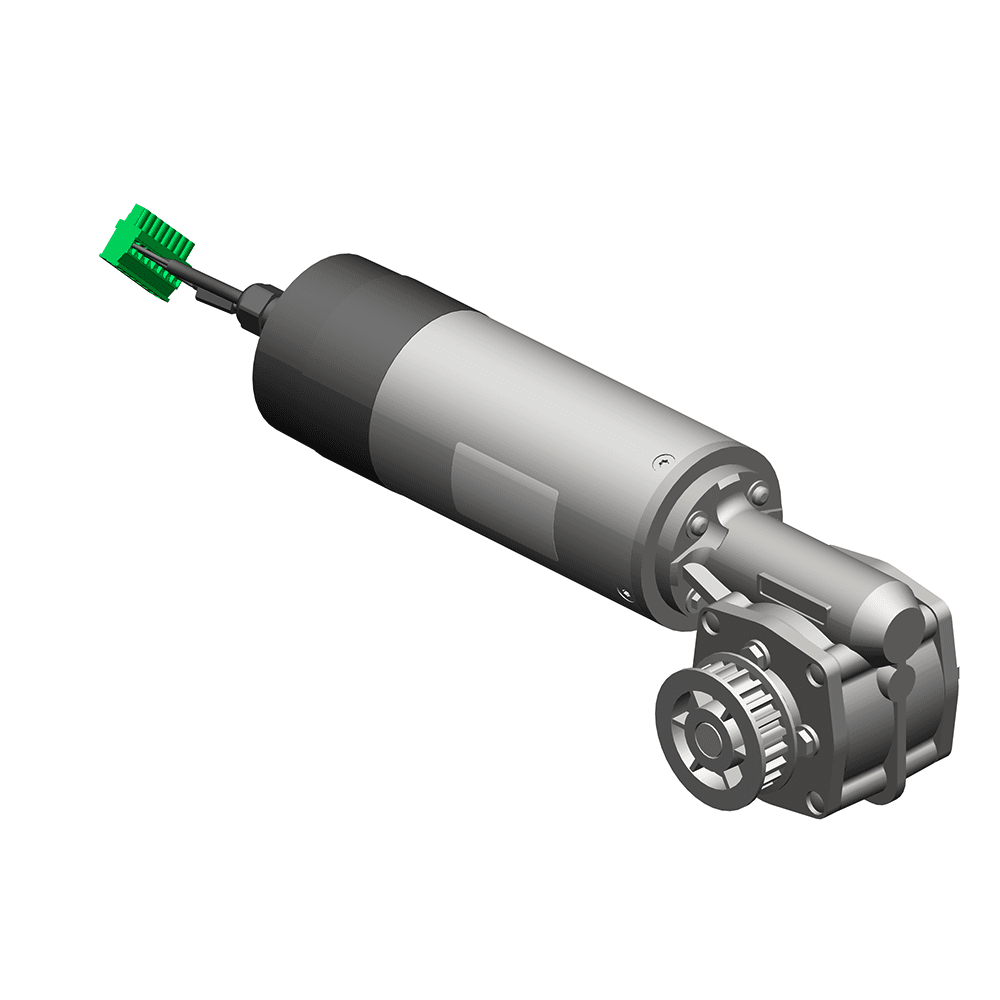

SIDOOR M5 L geared motor
Nomor Part: 6FB1103-0AT10-3MD0
Kategori
Gear motor for door control systems
Siemens 6FB1103-0AT10-3MD0. SIDOOR M5 L geared motor, Pinion, left max. 600 kg door weight, Cable length 1.5 m, 30VDC, -20°C to +50°C.
Spesifikasi
Other
CE markYes
Speed, max.0.5 m/s
Gear ratio15
UL approvalYes
Rated value (DC)30 V
Height of motor124 mm
Length of motor344 mm
Diameter of motor80 mm
Active power input225 W
EAC (formerly Gost-R)Yes
Weight of door, max.600 kg
China RoHS complianceYes
Product type designationM5 L
TÜV Inspectorate approvalYes
Operational current (rated value)7.5 A
Number of pulses per revolution, max.100
Width of gear unit, including drive pinion111 mm
Torque of the rotary operating mechanism (rated value)6.8 N·m
