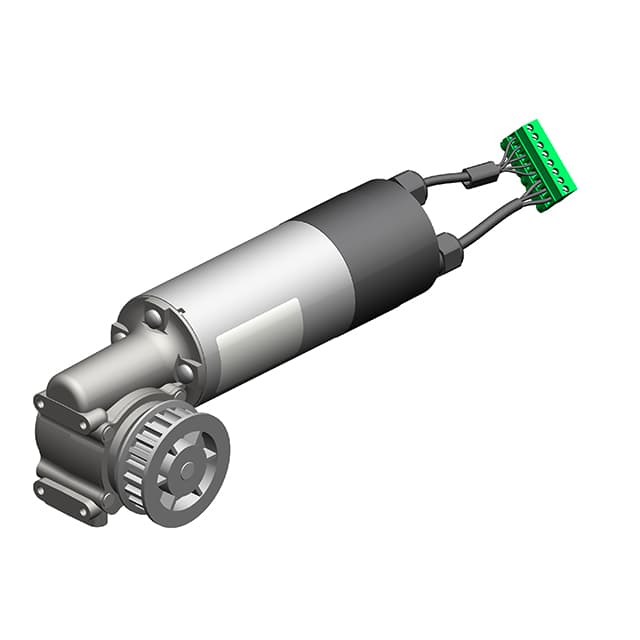

SIDOOR M3 R geared motor
Nomor Part: 6FB1103-0AT11-4MB0
Kategori
Gear motor for door control systems
Siemens 6FB1103-0AT11-4MB0. SIDOOR M3 R geared motor, Pinion, right max. 180kg door weight, Cable length 1.5 m, 30VDC, -20°C to +50°C.
Spesifikasi
Other
CE markYes
Speed, max.0.65 m/s
Gear ratio15
UL approvalYes
Rated value (DC)30 V

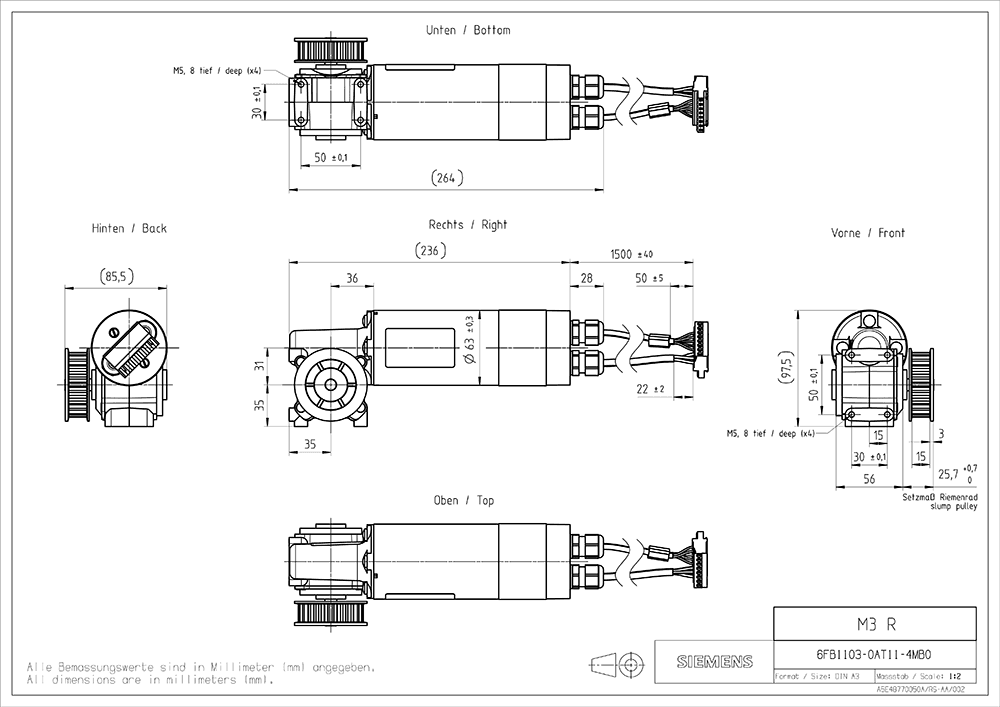

Height of motor98 mm
Length of motor236 mm
Diameter of motor63 mm
Active power input120 W
EAC (formerly Gost-R)Yes
Weight of door, max.180 kg
China RoHS complianceYes
Product type designationM3 R
TÜV Inspectorate approvalYes
Operational current (rated value)4 A
Number of pulses per revolution, max.100
Width of gear unit, including drive pinion85 mm
Torque of the rotary operating mechanism (rated value)3 N·m
