SIMATIC DP
Nomor Part: 6ES7972-0BB12-0XA0
Kategori
Rectangular connector, set (industrial connector)

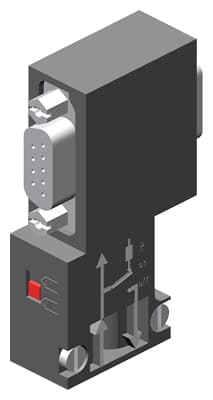

Siemens 6ES7972-0BB12-0XA0. SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90° cable outlet, 15.8x 64x 35.6 mm (WxHxD), terminating resistor with isolating function, With PG receptacle.
Spesifikasi
Mechanical
Net Weight45 g

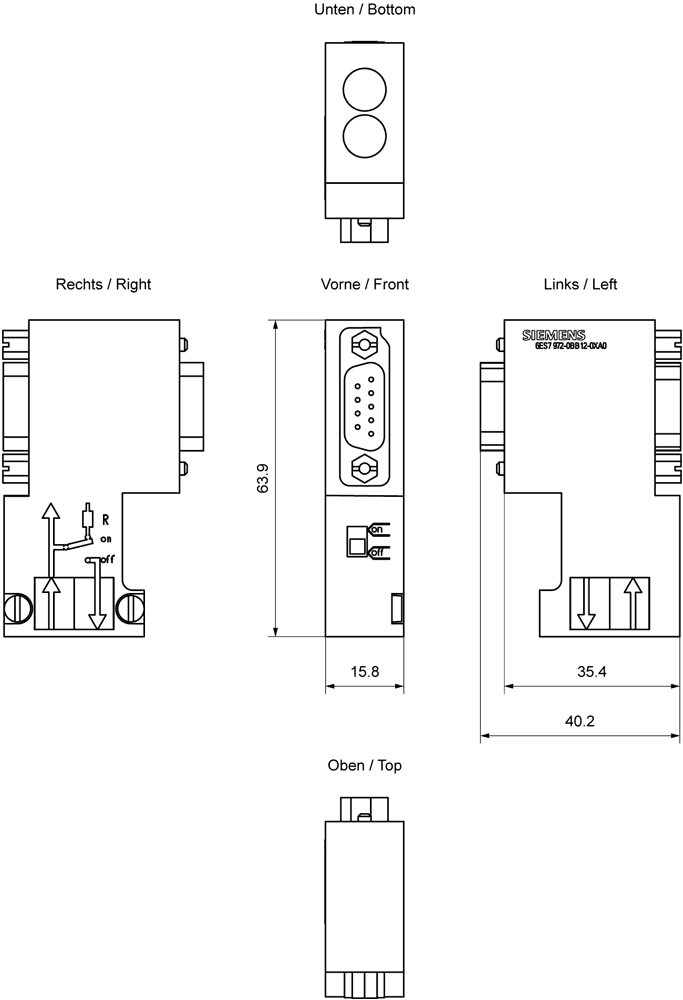

Dimensions
Width15.8 mm
Height64 mm
Depth35.6 mm
Other
protection class IPIP20
suitability for usefor connecting PROFIBUS stations to the PROFIBUS bus cable
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
type of cable outlet90 degree cable outlet
locking mechanism designScrewed joint
material / of the enclosureplastic

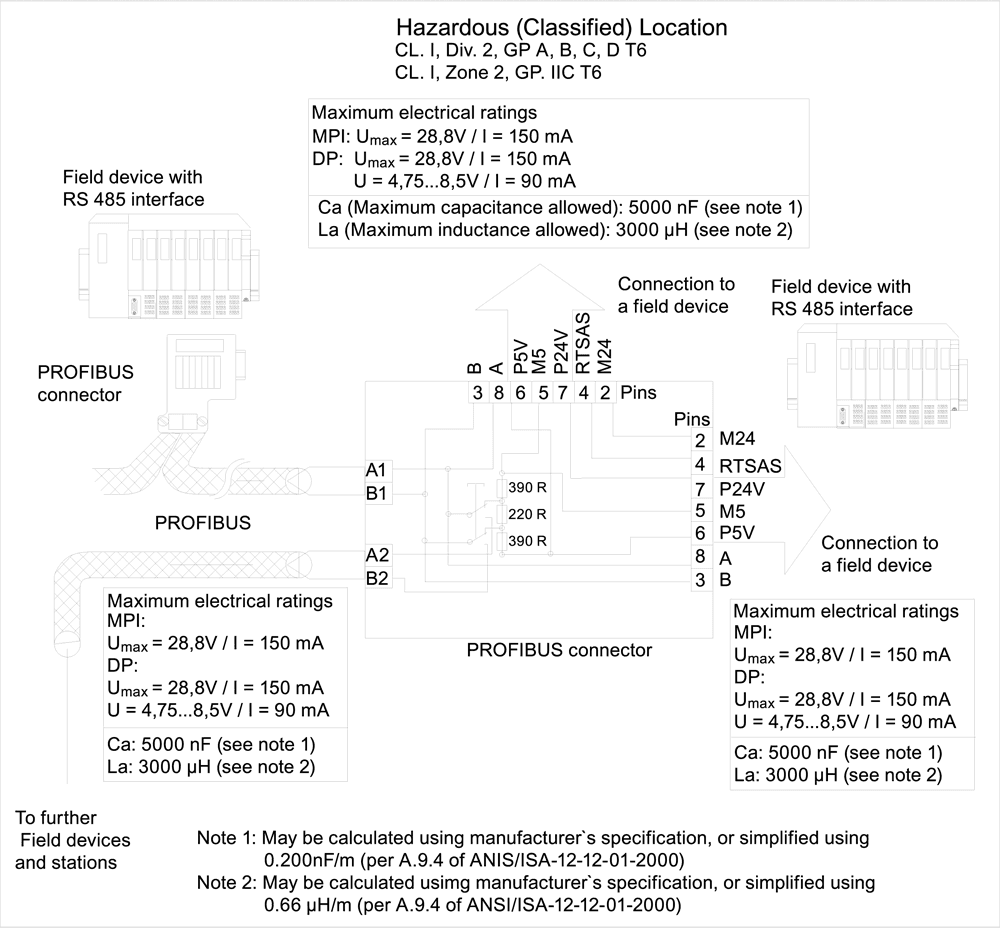

design of terminating resistorResistor combination integrated and connectable via slide switch
transfer rate / with PROFIBUS DP9.6 kbit/s ... 12 Mbit/s
type of electrical connection / FastConnectNo
