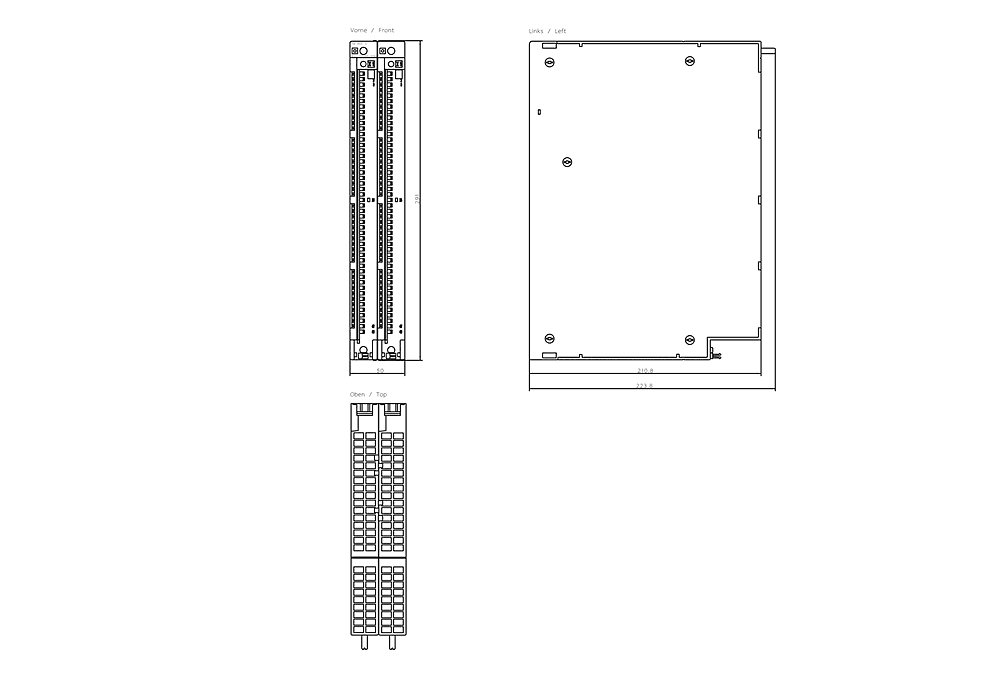

Weight, approx.1 400 g
Power loss, max.16.2 W
Power loss, typ.10.7 W
— for thermocouplesType B, J, K, R, S
Isolation tested with500 V DC
Number of analog inputs16; With thermocouples or 2-wire connection; 8 with Pt 100 or 4-wire connection
Short-circuit protectionYes; Electronic
— Input resistance (Pt 100)10 MΩ
— Input resistance (Type B)10 MΩ
— Input resistance (type J)10 MΩ
— Input resistance (Type K)10 MΩ
— Input resistance (Type R)10 MΩ
— Input resistance (Type S)10 MΩ
Number of digital inputs16
required front connector2x 48-pin
Number of digital outputs32
— for resistance thermometerPt100 (standard)
— Input resistance (0 to 10 V)100 kΩ
Controlling a digital inputYes
— Input resistance (0 to 20 mA)50 Ω
— Input resistance (0 to 23.5 mA)50 Ω
Substitute values connectableYes; Parameterizable
— Input resistance (4 mA to 20 mA)50 Ω
— Input resistance (-80 mV to +80 mV)10 MΩ
— Input resistance (-1.75 V to +11.75 V)100 kΩ
— Input resistance (-3.5 mA to +23.5 mA)50 Ω
— internal temperature compensationYes; Parameterizable
from load voltage L+ (without load), max.400 mA; typ. 330 mA
Limitation of inductive shutdown voltage toL+ (-1.5 V)
— external temperature compensation with Pt100Yes; Parameterizable
— permissible quiescent current (2-wire sensor), max.1.5 mA
Input characteristic curve in accordance with IEC 61131, type 2Yes
permissible input current for current input (destruction limit), max.40 mA
permissible input voltage for voltage input (destruction limit), max.20 V
