SIMATIC S7-400
Nomor Part: 6ES7451-3AL00-0AE0
Kategori
PLC function/technology module
Siemens 6ES7451-3AL00-0AE0. SIMATIC S7-400, positioning module FM 451 for rapid/slow traverse drives, 3 channels incl. configuration package on CD.
Spesifikasi

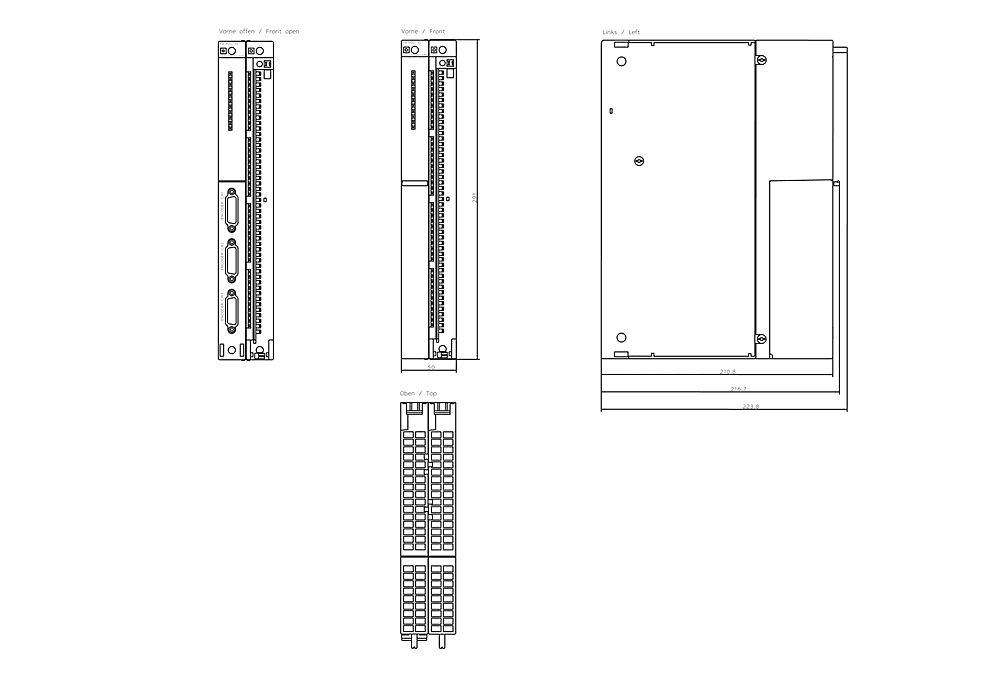

Dimensions
Width50 mm
Height290 mm
Depth210 mm
Other
FunctionsRapid traverse, creep, run right, run left
Weight, approx.1 300 g
Power loss, typ.3.6 W
Rated value (DC)24 V
Current consumption, typ.550 mA
Short-circuit protectionYes
Number of digital inputs12; 4 per axis
required front connector1x 48-pin
Number of digital outputs12; 4 per axis
