SIMATIC DP
Nomor Part: 6ES7148-4CA60-0AA0
Kategori
Fieldbus, decentr. periphery - power supply module

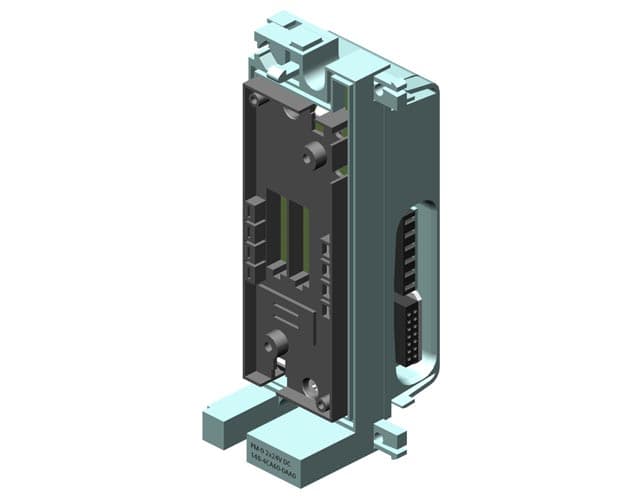

Siemens 6ES7148-4CA60-0AA0. SIMATIC DP, Power module output for Electronic modules ET 200 PRO PM-O, DC 2x24V, incl. bus module, connection module PM-O 6ES7194-4BH00-0AA0 order separately.
Spesifikasi

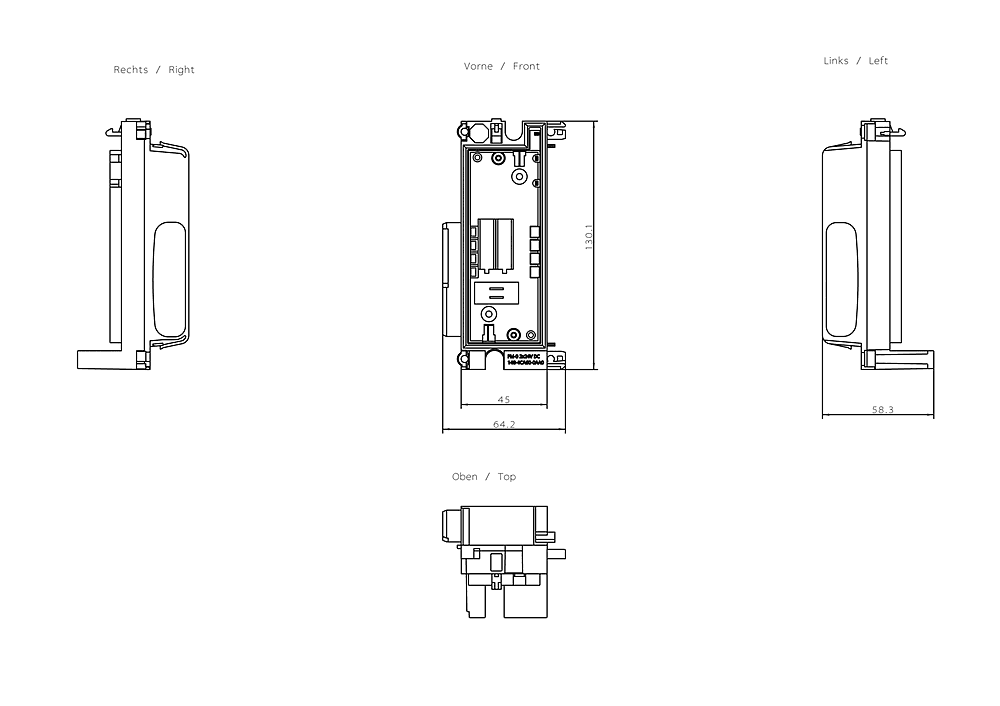

Dimensions
Width45 mm
Height130 mm
Depth35 mm
Other
max.10 A; up to 55 °C (on the internal busbars of the ET 200pro)
Weight, approx.150 g
Power loss, typ.1.1 W
Diagnostics functionYes
Isolation tested with707 V DC (type test)
IP degree of protectionIP65/67
Diagnostics short-circuitDiagnosis short circuit implemented after M for 1L+
from load voltage 2L+, max.3 mA
between load voltage and backplane busYes
