Aktif
SIMATIC
Nomor Part: 6ES7138-7EA01-0AA0
Kategori
Fieldbus, decentr. periphery - power supply module
Siemens 6ES7138-7EA01-0AA0. SIMATIC, power supply module 24 V DC for ET200iSP, Ex db eb [ib] IIC T4 Gb, Ex db eb [ib] I Mb.
Spesifikasi

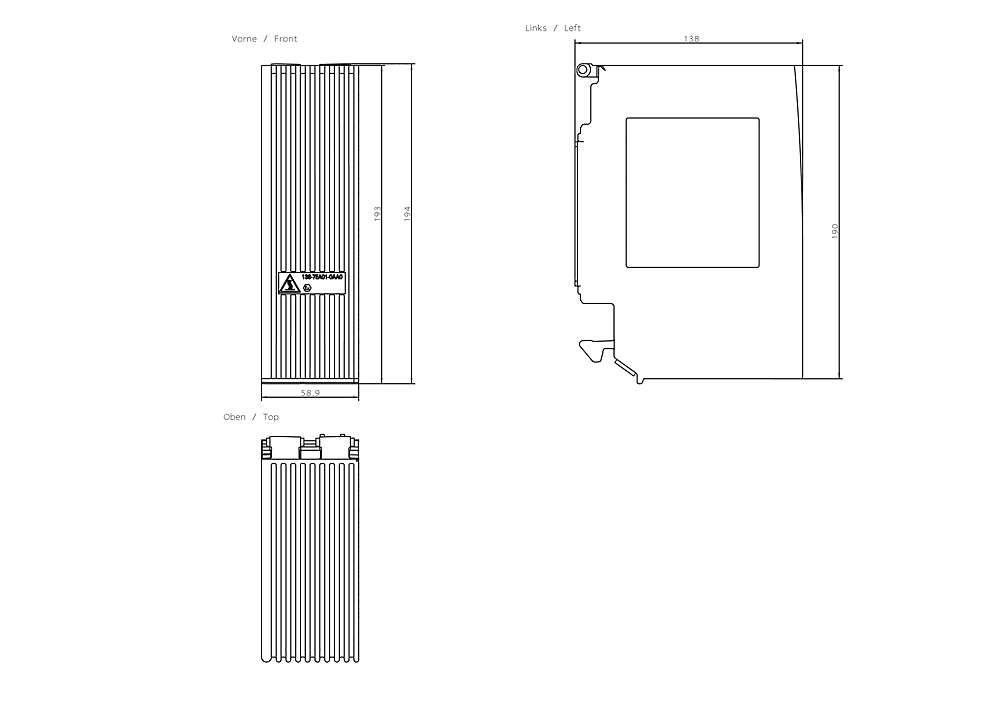

Dimensions
Width60 mm
Height190 mm
Depth136.5 mm
Other
BISYes
cULusLISTED E334384
AlarmsNo
CE markCE 0344
UKCA markDEKRA 21UKEX0027 Importer UK: Siemens plc Manchester M20 2UR
FM approvalCLASSIFIED 3025852
Weight, approx.2 700 g
Power loss, typ.20 W
Rated value (DC)24 V
primary/secondaryYes
Status indicatorYes
Current output, max.5 A
INMETRO certificateUL-BR 12.0051
Type of output voltageDC
Type of supply voltageDC
IP degree of protectionIP30
Product type designationPS 24 V DC
from supply voltage L+, max.4 A
Reverse polarity protectionYes
Suitable for safety functionsYes
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)30 V
between supply voltage and electronicsYes
reference designation according to IEC 81346-2 (2009)K
