Aktif

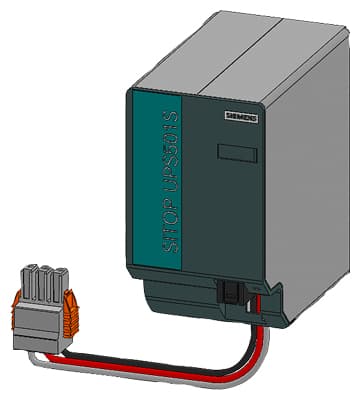

SITOP UPS501S expansion module 5 kWs for UPS500S (2.5 kWs
Nomor Part: 6EP1935-5PG01
Kategori
UPS
Siemens 6EP1935-5PG01. SITOP UPS501S expansion module 5 kWs for UPS500S (2.5 kWs, 5 kWs) degree of protection IP20.
Spesifikasi
Mechanical
Net Weight0.7 kg
Other
MTBF at 40 °C350 000 h
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
protection class IPIP20
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
shipbuilding approvalYes
type of energy storagewith capacitors
design of the interfacewithout
housing can be lined upYes
type of electrical connectionscrew terminal
product component PC interfaceNo
energy content of energy storage5 kW.s
Environmental Product DeclarationYes
installation width × mounting height70 mm × 225 mm
operating resource protection classClass III

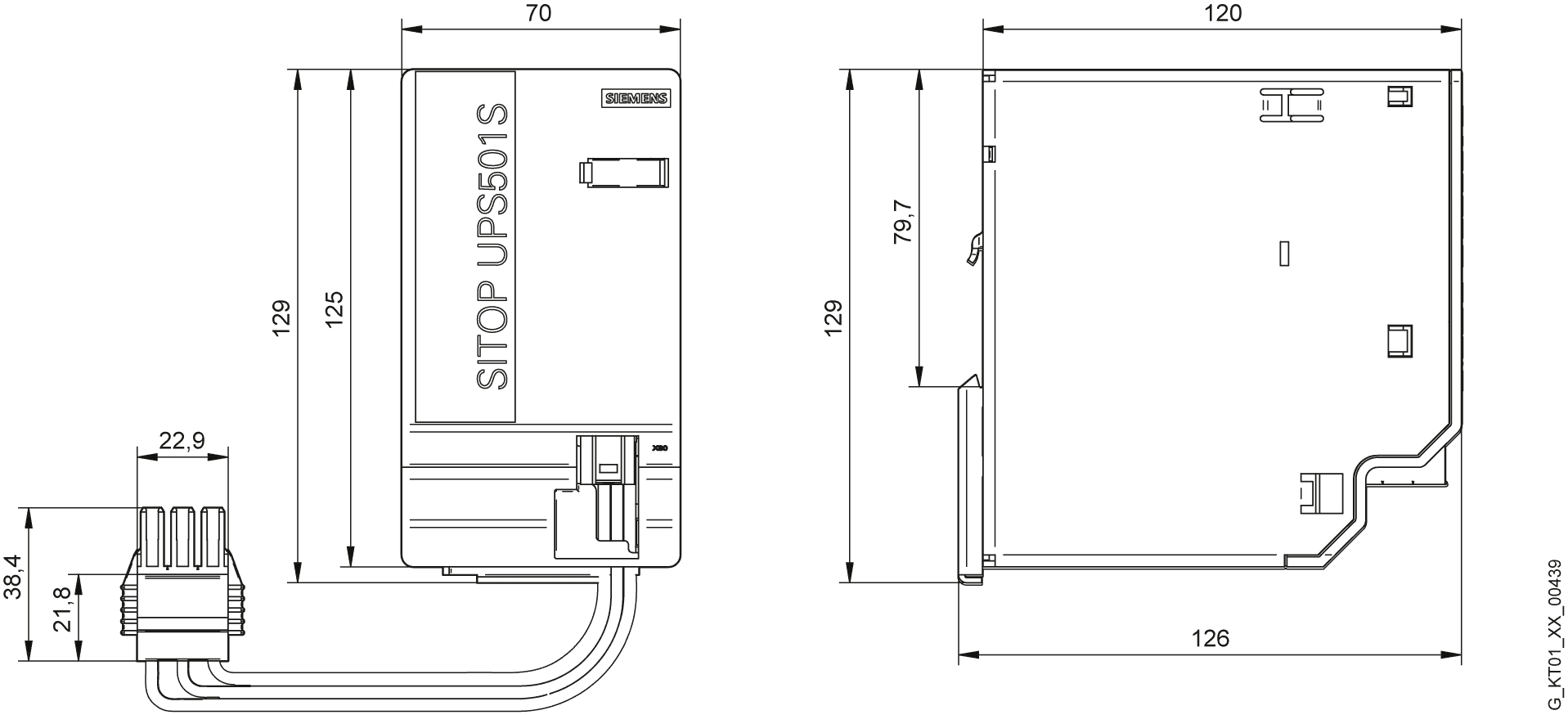

width × height × depth of the enclosure70 × 125 × 125 mm
product function communication functionNo
environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation
