MTBF at 40 °C966 183 h
peak current6.3 A
charging current0.2 A, 0.4 A
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
input voltage at DC22 ... 29 V
protection class IPIP20
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
shipbuilding approvalYes
electrical accessoriesBattery module
type of energy storagewith batteries
design of the interfaceserial
housing can be lined upYes
formula for output voltageVin - approx. 0.5 V
startup delay time typical1 s
supplied active power typical144 W
type of electrical connectionscrew terminal
product component PC interfaceYes
supply voltage at DC rated value24 V
Environmental Product DeclarationYes

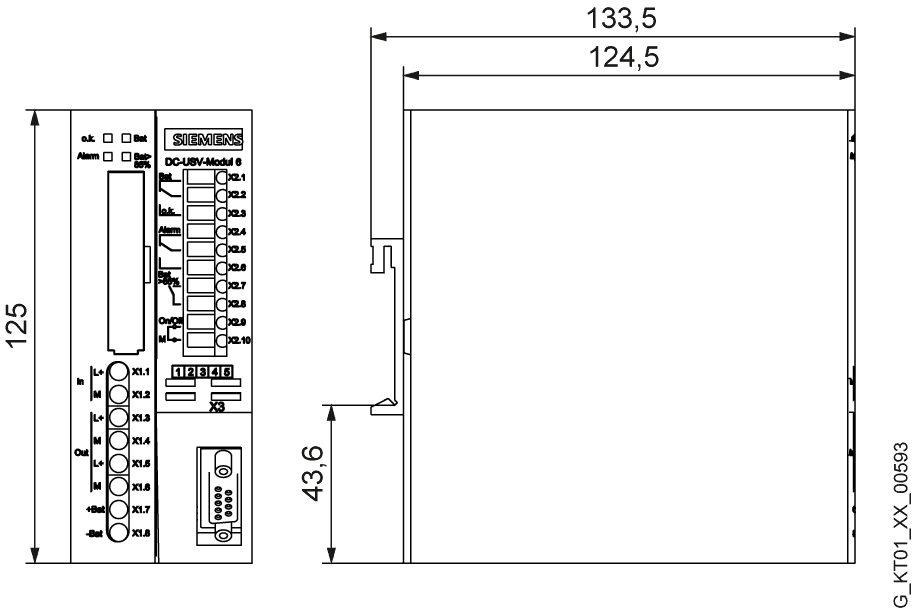

installation width × mounting height50 mm × 225 mm
operating resource protection classClass III
width × height × depth of the enclosure50 × 125 × 125 mm
output voltage in buffering mode at DC19 ... 28.5 V
product function communication functionNo
property of the output short-circuit proofYes
galvanic isolation between input and outputNo
environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation
design of the mains power cut bridging-connectionDependent on connected battery and load current, see selection table battery module and mains buffering times as well as the relevant important information notes!
voltage increase time of the output voltage typical60 ms
input current at rated input voltage 24 V rated value6 A; + approx. 0.6 A with empty battery

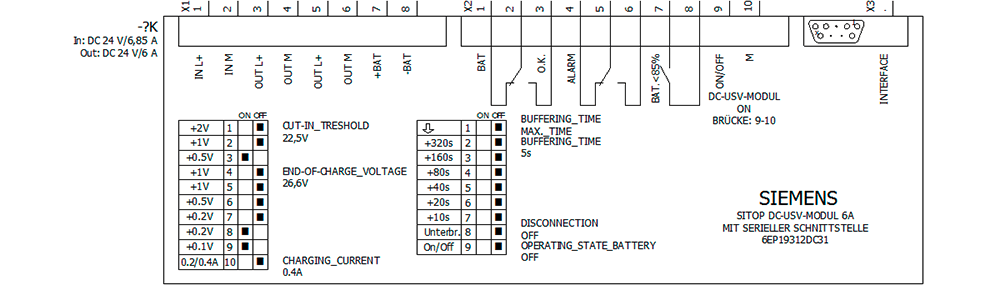

adjustable response value voltage for buffer connection22 ... 25.5 V; Adjustable in 0.5 V increments
adjustable response value voltage for buffer connection preset22.5 V
