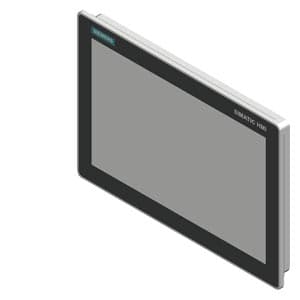

SIMATIC HMI IM-312A multi-touch industrial monitor 12" (resolution 1280 x 800) power supply; 12/24 V DC 1 x DP
Nomor Part: 6AV7862-2BC00-2AA0
Kategori
Recessed mounted monitor
Siemens 6AV7862-2BC00-2AA0. SIMATIC HMI IM-312A multi-touch industrial monitor 12" (resolution 1280 x 800) power supply; 12/24 V DC 1 x DP, 1 x HDMI 1 x USB type A & 1 x USB type.
Spesifikasi
Other
EMCCE, EN 61000-6-4, EN 61000-6-2
FCCYes
CE markYes; also UKCA
IP (rear)IP40 (cabinet mounting) / IP20 (VESA)
Built-in unitYes; Portrait mode possible

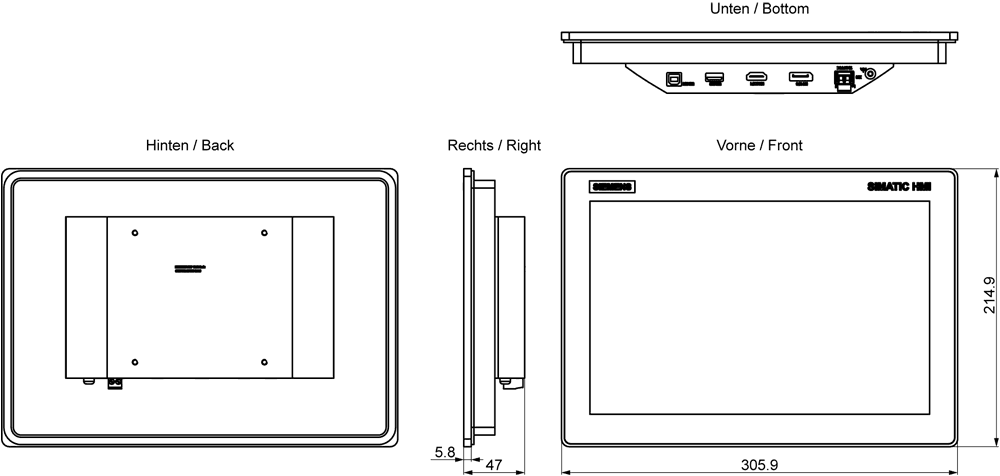

Display width261.1 mm
VESA mountingYes; VESA 100 x 100
Viewing angle160° x 160°
Display height163.2 mm
mounting depth47 mm
Power loss, max.17 W
Power loss, typ.15.5 W
Rated value (DC)24 V; 12/24 V DC
IP (at the front)IP65
Screen diagonal12.1 in
Number of colors16 000 000; 16 million
Design of displayTFT widescreen display, LED backlighting
Short designationIM-312A
RCM (formerly C-TICK)Yes
Mounting cutout, width290 mm
Weight (with packaging)2.8 kg
Mounting cutout, height199 mm
Type of supply voltage12-24 V DC
Height of housing front215 mm
Number of USB interfaces1; USB 2.0 (downstream)
Product type designationSIMATIC HMI IM-312A
Weight (without packaging)1.8 kg
Starting current inrush I²t0.1 A²·s
Width of the housing front306 mm
permissible range, lower limit (DC)9 V
permissible range, upper limit (DC)36 V
On Screen Display (OSD) configurationNo; Adjustable by means of software
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permitted forward tilt angle from vertical45°
maximum permitted backward tilt angle from vertical45°
current consumption (for rated value of supply voltage), max.1.7 A
current consumption (for rated value of supply voltage), min.0.43 A
