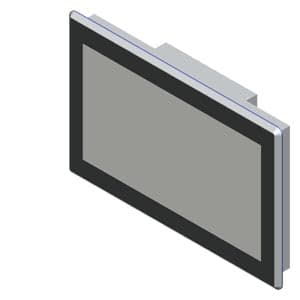

SIMATIC IFP 1500 V2 ext. hygienic
Nomor Part: 6AV7285-6HH00-0AB0
Kategori
Recessed mounted monitor
Siemens 6AV7285-6HH00-0AB0. SIMATIC IFP 1500 V2 ext. hygienic, IP69, stainless steel, 15" multi-touch display (16:9) with 1920x1080 pixel resolution, built-in unit for 24 V DC, display port interface, can be placed up to 100 m away HDBaseT, USB on the rear side, blue FDA compliant gasket, increased impact protection with splinter protection display front according to directives EN 1672-2, FDA 21 CFR 177.2006 neutral design.
Spesifikasi
Other
CCCNo; in preparation
EMCCE, EN 55011, EN 61000-6-4, EN 61000-6-2
cULusYes
DesignBuilt-in unit
CE markYes
IP (rear)IP20
KC approvalNo; in preparation
UL approvalYes
Built-in unitYes; Portrait mode possible
Display width344.2 mm
VESA mountingYes; VESA 100 x 100 integrated
Viewing angle178° x 178°
Display height193.5 mm
Front mountingYes
mounting depth67.7 mm
Power loss, max.30 W
Power loss, typ.24 W
Rated value (DC)24 V; PELV / SELV floating
IP (at the front)IP66K, IP69
Screen diagonal15.6 in; 15"
USB on the rearYes; 2x onboard
Control elementsmulti-touch screen
Number of colors16 777 216; 24 bit
Design of displayTFT widescreen display, LED backlighting
Short designationFlat Panel 15" multi-touch ext. hygienic
RCM (formerly C-TICK)Yes
Screen diagonal [cm]40 cm
Mounting cutout, width382 mm; Tolerance: +1 mm
Mounting cutout, height241 mm; Tolerance: +1 mm
Type of supply voltageDC
Current consumption, max.1.3 A
Enclosure material (rear)stainless steel, aluminum
Height of housing front272.2 mm
Number of USB interfaces2; USB 2.0 type A
Product type designationIFP1500 V2 ext. hyg.
Weight (without packaging)4.7 kg
Starting current inrush I²t0.5 A²·s
Width of the housing front411.8 mm
Connection for keyboard/mouseUSB
Current consumption (rated value)1 A
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
On Screen Display (OSD) configurationNo; Adjustable by means of software
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permitted forward tilt angle from vertical35°
maximum permitted backward tilt angle from vertical35°
