Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
CounterYes
Fast modeYes
Weight, approx.45 g
Power loss, typ.1.5 W
Rated value (DC)24 V
— parameterizableYes
to SIMATIC S7-300Yes
to SIMATIC S7-400Yes
usable BaseUnitsBU type A0
Number of outputs2
to SIMATIC S7-1200Yes
to SIMATIC S7-1500Yes
Automatic encodingYes
— Direction dependencyYes
— Velocity measurement100 ppm; depending on measuring interval and signal evaluation
Isolation tested with750 V DC (type test) and according to EN 50155 (routine test)
— Frequency measurement100 ppm; depending on measuring interval and signal evaluation
— Number of comparators2
Type of digital outputTransistor
Current consumption, max.75 mA; without load
Short-circuit protectionYes; electronic/thermal
Number of digital inputs2

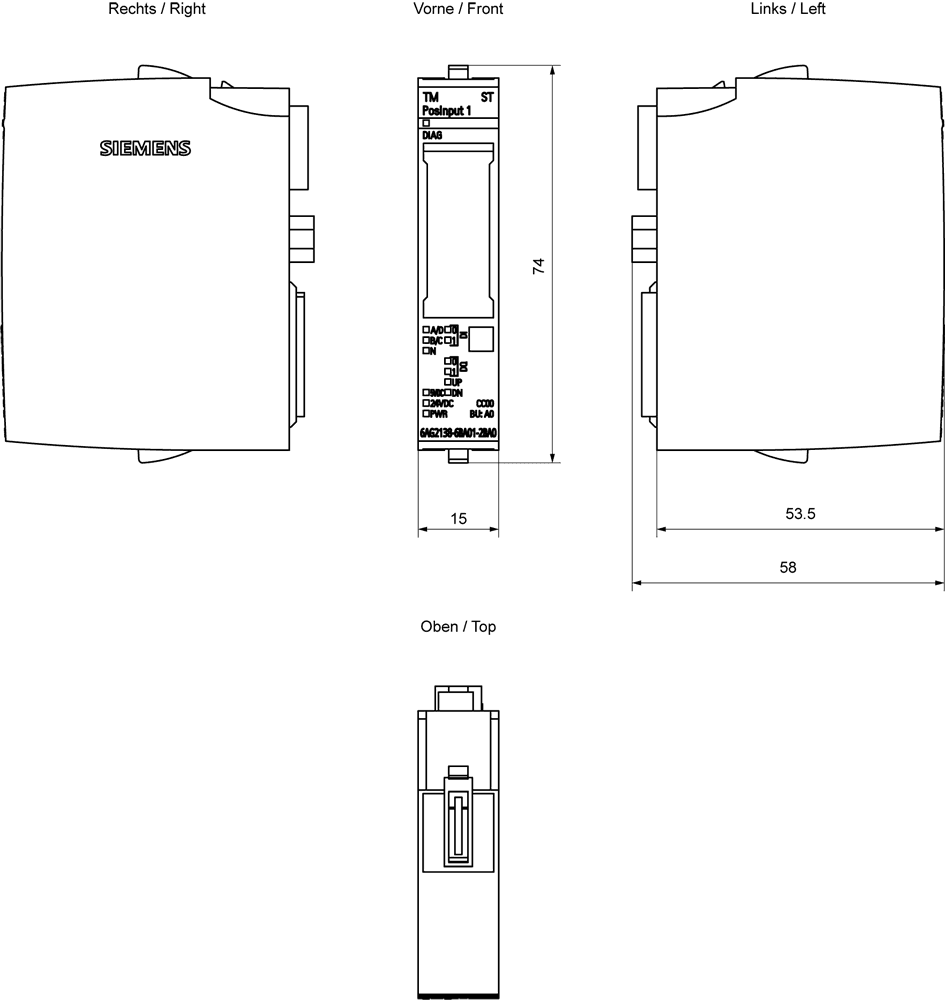

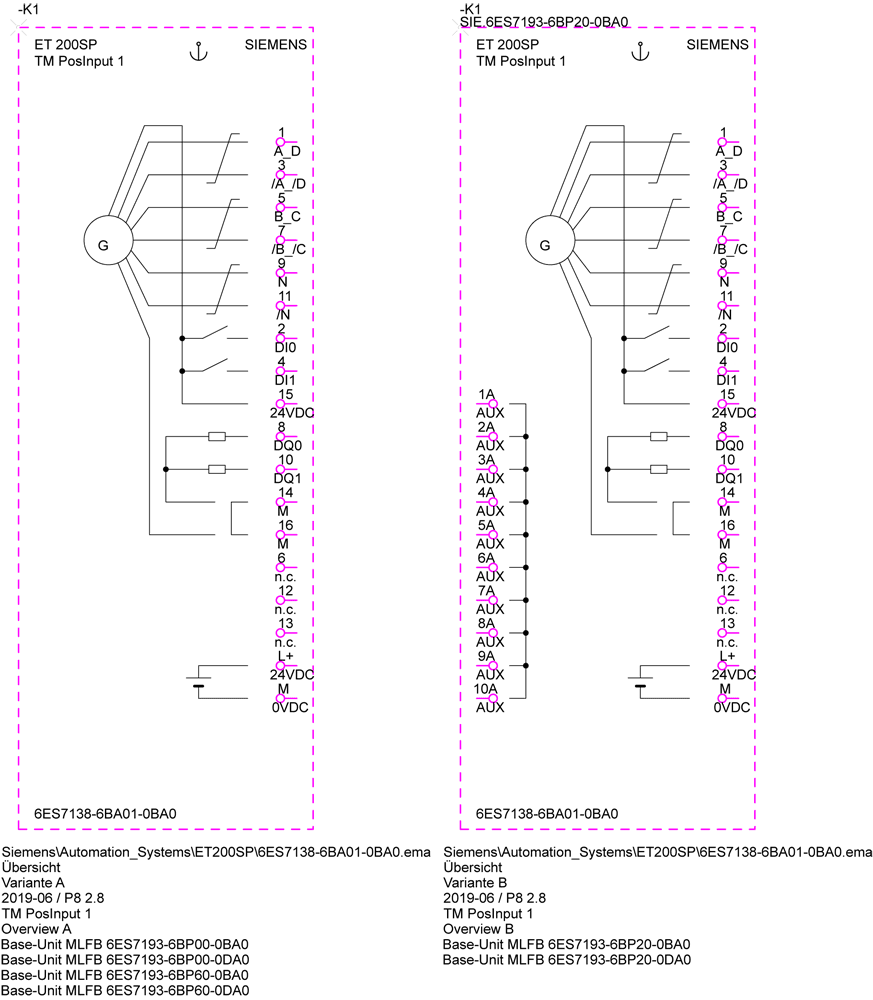

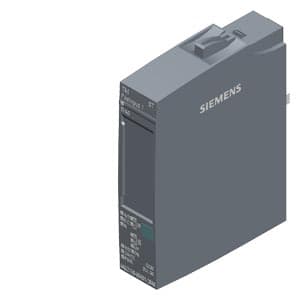

Product type designationTM PosInput 1
Number of digital outputs2
— Frequency measurement, max.4 MHz
— Frequency measurement, min.0.04 Hz
— Cycle duration measurement100 ppm; depending on measuring interval and signal evaluation
Controlling a digital inputYes
Number of RS 485 interfaces0
to standard PROFIBUS masterYes
Substitute values connectableYes; Parameterizable
Suitable for safety functionsNo
Digital inputs, parameterizableYes
— Cycle duration measurement, max.25 s
— Cycle duration measurement, min.0.25 µs
Digital outputs, parameterizableYes
to standard PROFINET controllerYes
— Can be changed from user programYes
Limitation of inductive shutdown voltage toL+ (-53 V)
Color code for module-specific color-coded labelCC00
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to chemically active substances according to EN 60721-3-5Yes; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-5Yes; Class 5B2 mold, fungus and dry rot spores (with the exception of fauna); Class 5B3 on request
— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *
— to mechanically active substances according to EN 60721-3-5Yes; Class 5S3 incl. sand, dust; *
— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
— Against mechanical environmental conditions acc. to EN 60721-3-5Yes; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Input characteristic curve in accordance with IEC 61131, type 3Yes
— against mechanical environmental conditions in agriculture acc. to ISO 15003Yes; Level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
