SIMATIC ET 200SP
Nomor Part: 6ES7136-6CB00-0CA0
Kategori
Fieldbus, decentr. periphery - function-/technology module

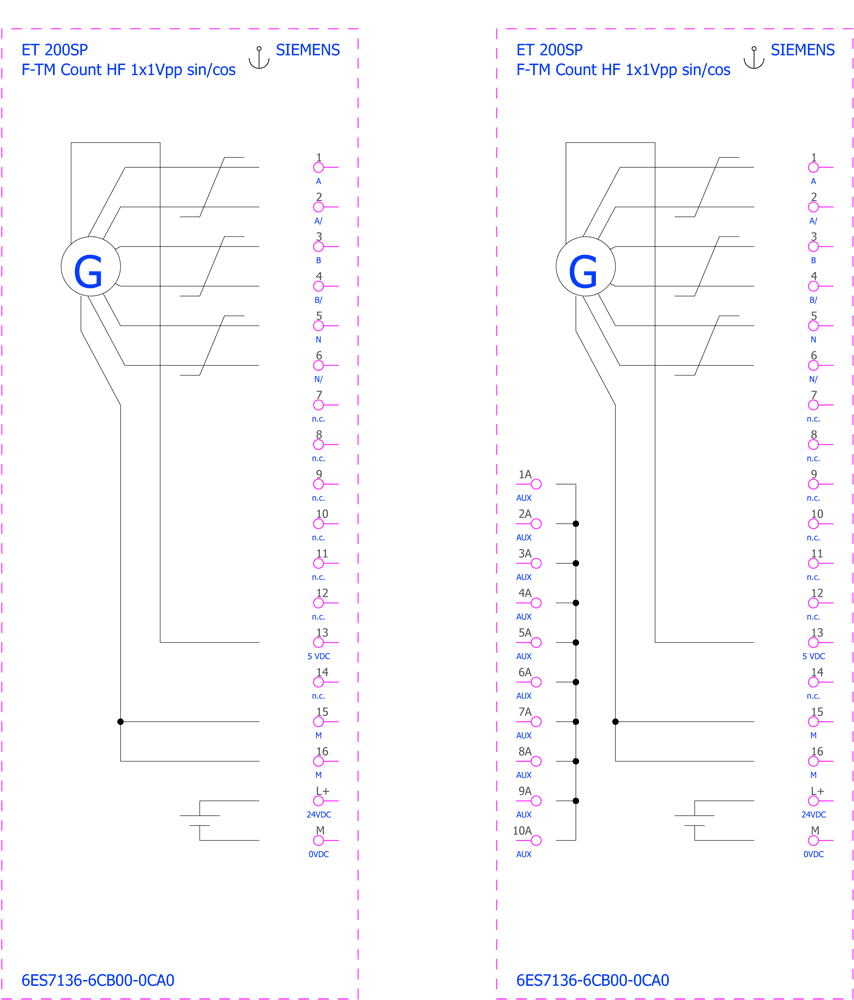

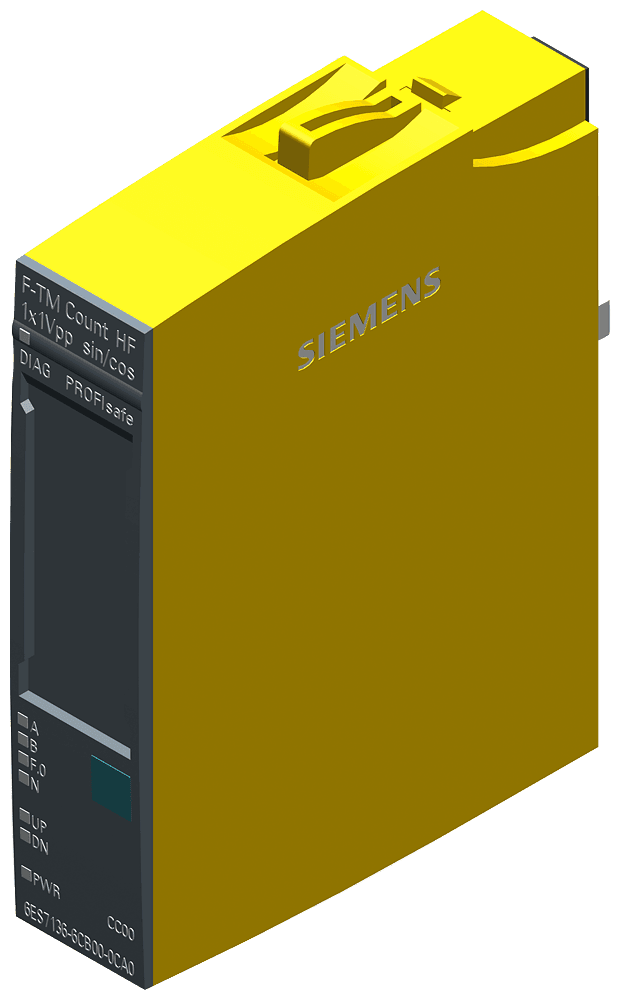

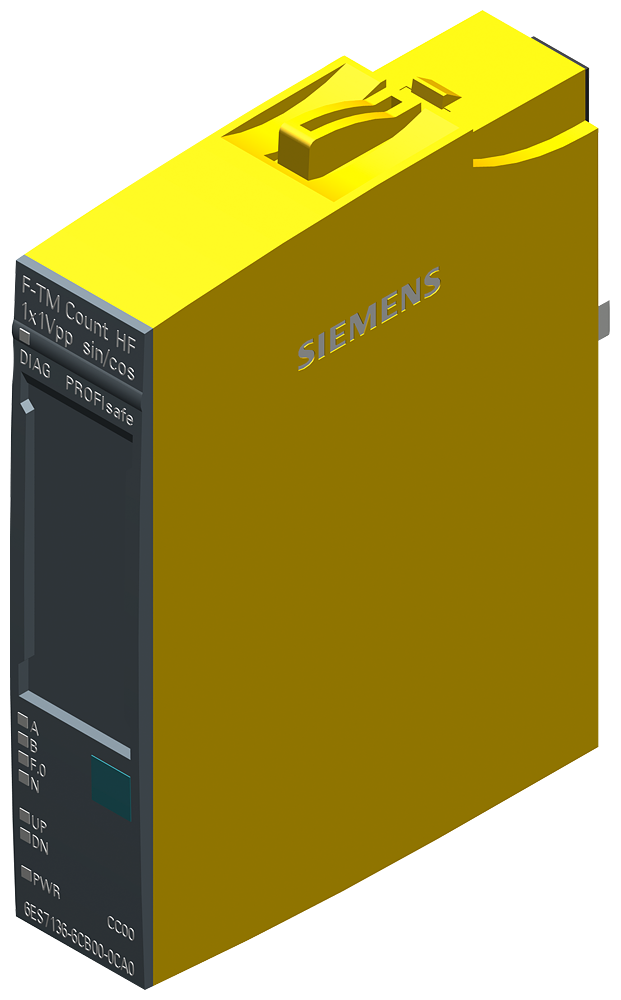

Siemens 6ES7136-6CB00-0CA0. SIMATIC ET 200SP, F-TM Count 1x1Vpp sin/cos HF, PROFIsafe, 1 channel, for incremental rotary encoders, sin/cos 1 Vpp, suitable for BU type A0, pack quantity: 1 unit.
Spesifikasi

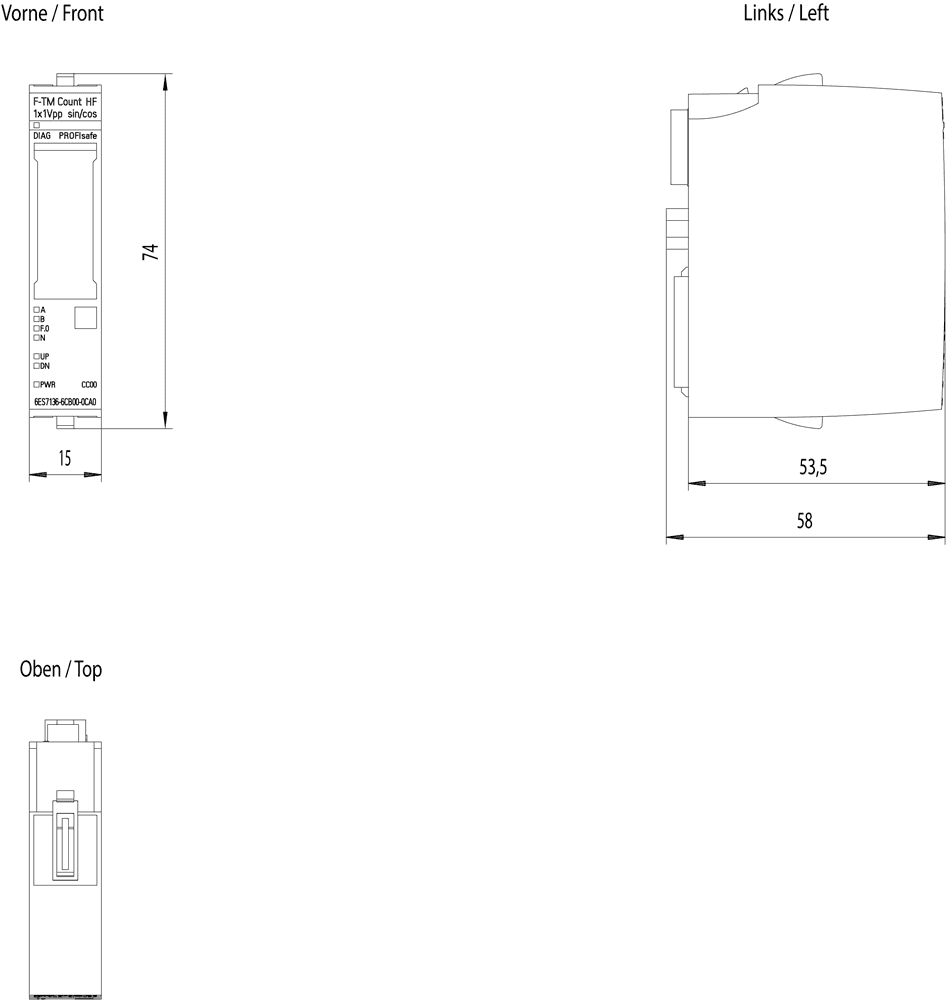

Dimensions
Width15 mm
Height73 mm
Depth58 mm
Other
CounterYes
— Number, max.1
Weight, approx.42 g
Power loss, typ.1.25 W
Rated value (DC)24 V
— parameterizableYes
Firmware versionV1.0
usable BaseUnitsBU type A0
Automatic encodingYes
Diagnostics functionYes; see chapter "Diagnostic Messages" in the manual
— Velocity measurementup to 100 ppm; depending on measuring interval and signal evaluation; at low frequency external noise may have an effect on accuracy (reference the graph in 2.2.3)
Isolation tested with707 V DC (type test)
— Frequency measurementup to 100 ppm; depending on measuring interval and signal evaluation; at low frequency external noise may have an effect on accuracy (reference the graph in 2.2.3)
Current consumption, max.50 mA; without load, 150 mA with 300 mA encoder load
Number of digital inputs1; (counter input)
Product type designationF-TM Count 1x1Vpp sin/cos HF
— Velocity measurement, max.2 147 483 (speed in configured units per selected time basis - speed*1 000)
— Velocity measurement, min.0 (speed in configured units per selected time basis - speed*1 000)
— Frequency measurement, max.800 kHz; with quadruple evaluation
— Frequency measurement, min.0.04 Hz
— Cycle duration measurementup to 100 ppm; depending on measuring interval and signal evaluation; at low frequency external noise may have an effect on accuracy (reference the graph in 2.2.3)
Number of RS 485 interfaces0
Suitable for safety functionsYes
Digital inputs, parameterizableYes
— Cycle duration measurement, max.25 s
— Cycle duration measurement, min.1 µs
— global warming potential, (total) [CO2 eq]88.3 kg
Color code for module-specific color-coded labelCC01
power supply according to NEC Class 2 requiredNo
— low demand mode: PFDavg in accordance with SIL1< 2.00E-03 signal monitoring disabled
— Low demand mode: PFDavg in accordance with SIL3< 3.00E-05
— global warming potential, (during operation) [CO2 eq]76.6 kg
— global warming potential, (during production) [CO2 eq]13.1 kg
— high demand/continuous mode: PFH in accordance with SIL1< 3.00E-08 1/h signal monitoring disabled
— High demand/continuous mode: PFH in accordance with SIL3< 1.00E-09 1/h
— global warming potential, (after end of life cycle) [CO2 eq]-1.37 kg
