CounterYes
— Number, max.1

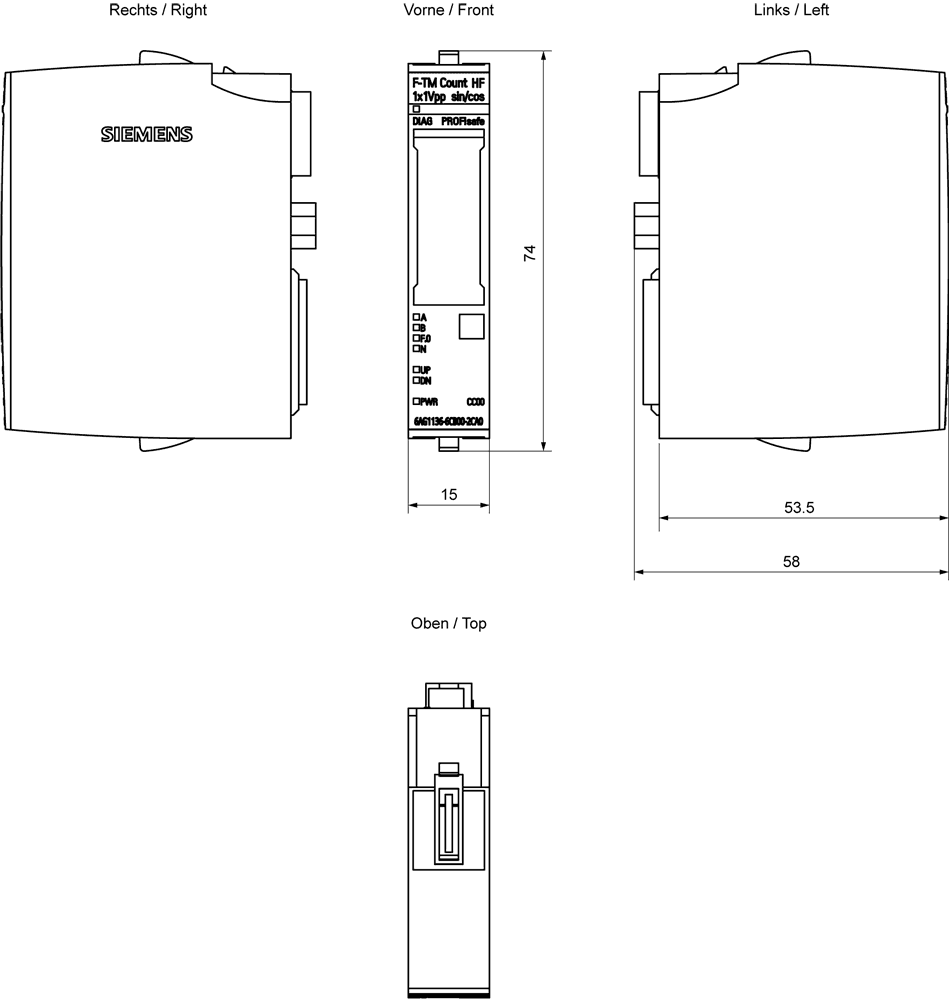

Weight, approx.42 g
Power loss, typ.1.25 W
Rated value (DC)24 V
— parameterizableYes
usable BaseUnitsBU type A0
Automatic encodingYes
Diagnostics functionYes; see chapter "Diagnostic Messages" in the manual
— Velocity measurementup to 100 ppm; depending on measuring interval and signal evaluation; at low frequency external noise may have an effect on accuracy (reference the graph in 2.2.3)
Isolation tested with707 V DC (type test)
— Frequency measurementup to 100 ppm; depending on measuring interval and signal evaluation; at low frequency external noise may have an effect on accuracy (reference the graph in 2.2.3)
Current consumption, max.50 mA; without load, 150 mA with 300 mA encoder load

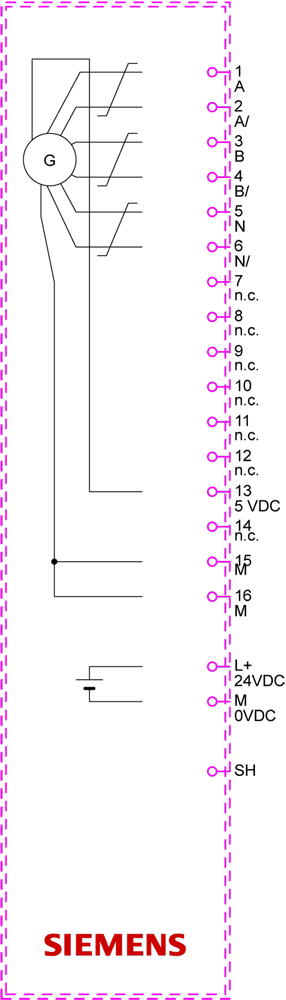

Number of digital inputs1; (counter input)
Product type designationF-TM Count 1x1Vpp sin/cos HF
— Velocity measurement, max.2 147 483 (speed in configured units per selected time basis - speed*1 000)
— Velocity measurement, min.0 (speed in configured units per selected time basis - speed*1 000)
— Frequency measurement, max.800 kHz; with quadruple evaluation
— Frequency measurement, min.0.04 Hz
— Cycle duration measurementup to 100 ppm; depending on measuring interval and signal evaluation; at low frequency external noise may have an effect on accuracy (reference the graph in 2.2.3)
Number of RS 485 interfaces0
Suitable for safety functionsYes
Digital inputs, parameterizableYes
— Cycle duration measurement, max.25 s
— Cycle duration measurement, min.1 µs
— global warming potential, (total) [CO2 eq]88.3 kg
Color code for module-specific color-coded labelCC01
power supply according to NEC Class 2 requiredNo
— low demand mode: PFDavg in accordance with SIL1< 2.00E-03 signal monitoring disabled
— Low demand mode: PFDavg in accordance with SIL3< 3.00E-05
— global warming potential, (during operation) [CO2 eq]76.6 kg
— global warming potential, (during production) [CO2 eq]13.1 kg
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— high demand/continuous mode: PFH in accordance with SIL1< 3.00E-08 1/h signal monitoring disabled
— High demand/continuous mode: PFH in accordance with SIL3< 1.00E-09 1/h
— global warming potential, (after end of life cycle) [CO2 eq]-1.37 kg
— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)
— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *
— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *
— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
— Against mechanical environmental conditions acc. to EN 60721-3-6Yes; class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
