Weight, approx.30 g
Power loss, typ.1.5 W
Rated value (DC)24 V
usable BaseUnitsBU type A0
Output voltage (DC)4.85 V
Automatic encodingYes
Diagnostics functionYes; Diagnostic alarm
Isolation tested with707 V DC (type test)
Measurement principleSigma Delta
Bus cycle time (TDP), min.125 µs

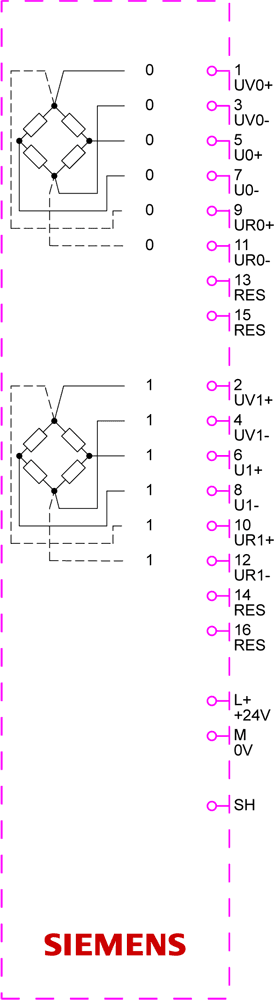

Number of analog inputs2; Differential inputs
Short-circuit protectionYes

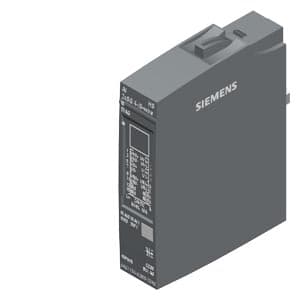

Product type designationAI 2xSG 4-/6-wire HS
Calibration possible in RUNNo
Cycle time (all channels), min.100 µs
Reverse polarity protectionYes
Analog input with oversamplingYes
Current consumption (rated value)70 mA
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Reparameterization possible in RUNYes
Temperature coefficient, zero point≤ ±0.25 μV/K
Filtering and processing time (TCI), min.87 µs
Linearity error (relative to input range), (+/-)0.025 %
Power consumption from the backplane bus65 mW
Temperature error (relative to input range), (+/-)0.0005 %/°C; Strain gauge full bridge, 6-conductor connection
Color code for module-specific color-coded labelCC00
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity degree 3)
— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity degree 3).
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)
— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust
— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust
— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
— Against mechanical environmental conditions acc. to EN 60721-3-6Yes; class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Temperature coefficient, span, 4-wire connection (in relation to end value)≤ ±5 ppm/K
Temperature coefficient, span, 6-wire connection (in relation to end value)≤ ±10 ppm/K
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
