Weight, approx.32 g
Power loss, typ.0.75 W
Rated value (DC)24 V
— parameterizableYes
usable BaseUnitsBU type A0, A1
Diagnostics functionYes
— Input resistance (PTC)1 MΩ
Isolation tested with707 V DC (type test)
Measurement principleintegrating (Sigma-Delta)
between the inputs (UCM)10 V DC
Current consumption, max.35 mA
Number of analog inputs8
— Input resistance (Ni 100)1 MΩ
— Input resistance (Ni 120)1 MΩ
— Input resistance (Ni 200)1 MΩ
— Input resistance (Ni 500)1 MΩ
— Input resistance (Pt 100)1 MΩ
— Input resistance (Pt 200)1 MΩ
— Input resistance (Pt 500)1 MΩ
— Input resistance (Type B)1 MΩ
— Input resistance (Type C)1 MΩ
— Input resistance (Type E)1 MΩ
— Input resistance (type J)1 MΩ
— Input resistance (Type K)1 MΩ
— Input resistance (Type L)1 MΩ
— Input resistance (Type N)1 MΩ
— Input resistance (Type R)1 MΩ
— Input resistance (Type S)1 MΩ
— Input resistance (Type T)1 MΩ
— Input resistance (Type U)1 MΩ

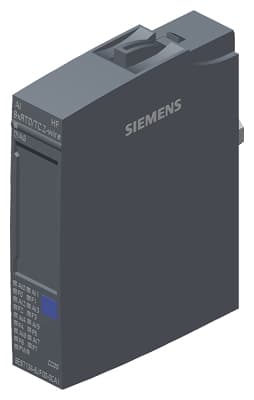

Product type designationAI 8xRTD/TC 2-wire HF
— Input resistance (Ni 1000)1 MΩ
— Input resistance (Pt 1000)1 MΩ
— internal comparison pointYes; with BaseUnit type A1
— Input resistance (LG-Ni 1000)1 MΩ
Calibration possible in RUNYes
Cycle time (all channels), min.Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels)
Reverse polarity protectionYes
— fixed reference temperatureYes
— Input resistance (-1 V to +1 V)1 MΩ
— Input resistance (0 to 150 ohms)1 MΩ
— Input resistance (0 to 300 ohms)1 MΩ
— Input resistance (0 to 600 ohms)1 MΩ
— Reference channel of the groupYes
— Input resistance (0 to 3000 ohms)1 MΩ
— Input resistance (0 to 6000 ohms)1 MΩ
— Input resistance (-50 mV to +50 mV)1 MΩ
— Input resistance (-80 mV to +80 mV)1 MΩ
— Reference channel of the moduleYes
Crosstalk between the inputs, min.-50 dB
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
— Input resistance (-250 mV to +250 mV)1 MΩ
Reparameterization possible in RUNYes
— Number of reference channel groups4; Group 0 to 3
— Input resistance (Type TXK/TXK(L) to GOST)1 MΩ
Linearity error (relative to input range), (+/-)0.01 %; ±0.1 % for resistance thermometers and resistance
Temperature error (relative to input range), (+/-)0.0009 %/K; ±0.005 % / K at thermocouple
Color code for module-specific color-coded labelCC00
— additional processing time for wire-break check2 ms; In the ranges resistance thermometers, resistors and thermocouples
Technical unit for temperature measurement adjustableYes; °C/°F/K
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request
— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *
— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *
— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— Against mechanical environmental conditions acc. to EN 60721-3-6Yes; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Constant measurement current for resistance-type transmitter, typ.2 mA
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.05 %
permissible input voltage for voltage input (destruction limit), max.30 V
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
