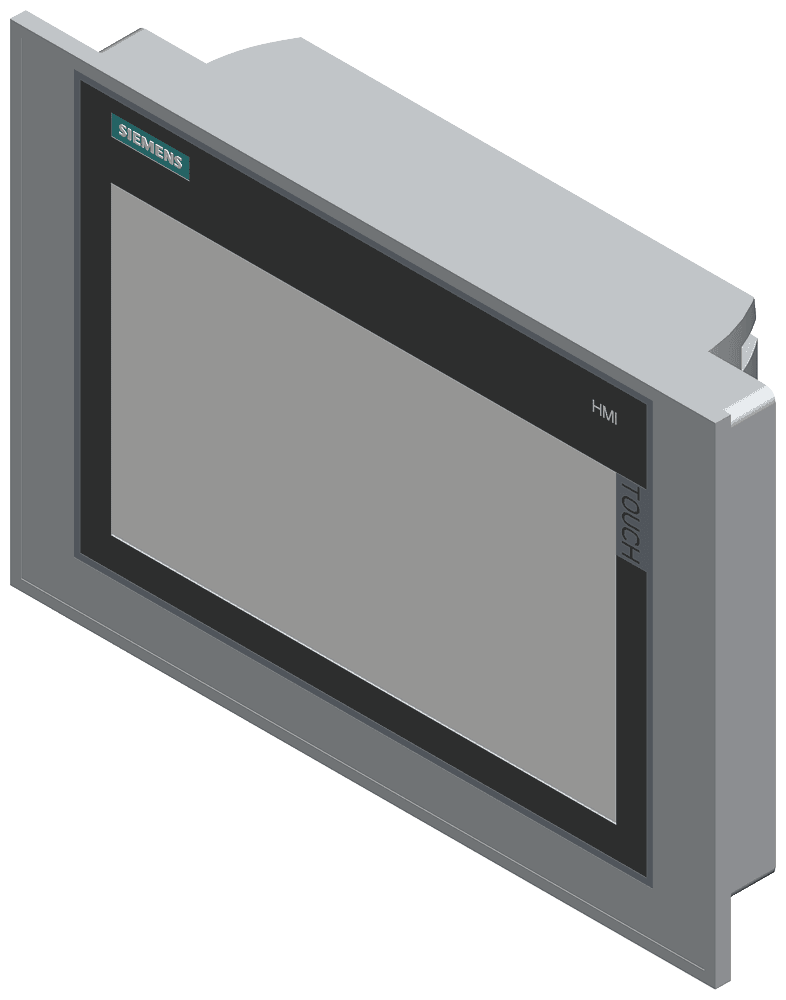

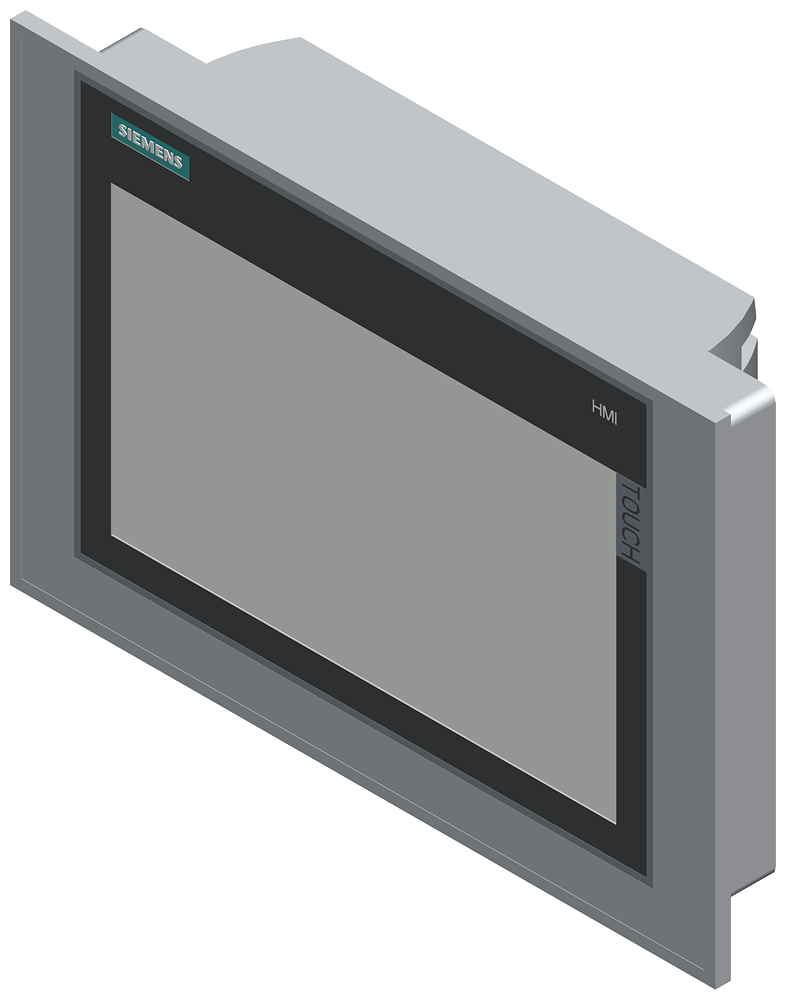

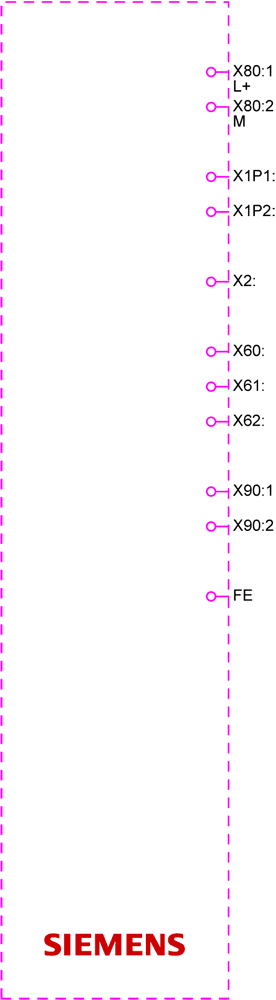

SIPLUS HMI TP900 Comfort based on 6AV2124-0JC01-0AX0 with conformal coating
Nomor Part: 6AG1124-0JC01-4AX0
Kategori
Graphic panel
Siemens 6AG1124-0JC01-4AX0. SIPLUS HMI TP900 Comfort based on 6AV2124-0JC01-0AX0 with conformal coating, 0...+50 °C,.
Spesifikasi
Other
IRTYes; As of WinCC V12
MPIYes
RAMYes
— CSVYes
— MRPYes; As of WinCC V12
— RDBYes
— TXTYes
— F1...Fx0
FlashYes
IP (rear)IP20
PrinterYes
Info LEDNo
PROFIBUSYes
PROFINETYes
— EthernetYes
Error LEDNo
LibrariesYes
Power LEDNo
— retentiveYes
EtherNet/IPYes
USB memoryYes
— US EnglishYes
— USB memoryYes
proprietaryNo
— Memory cardYes

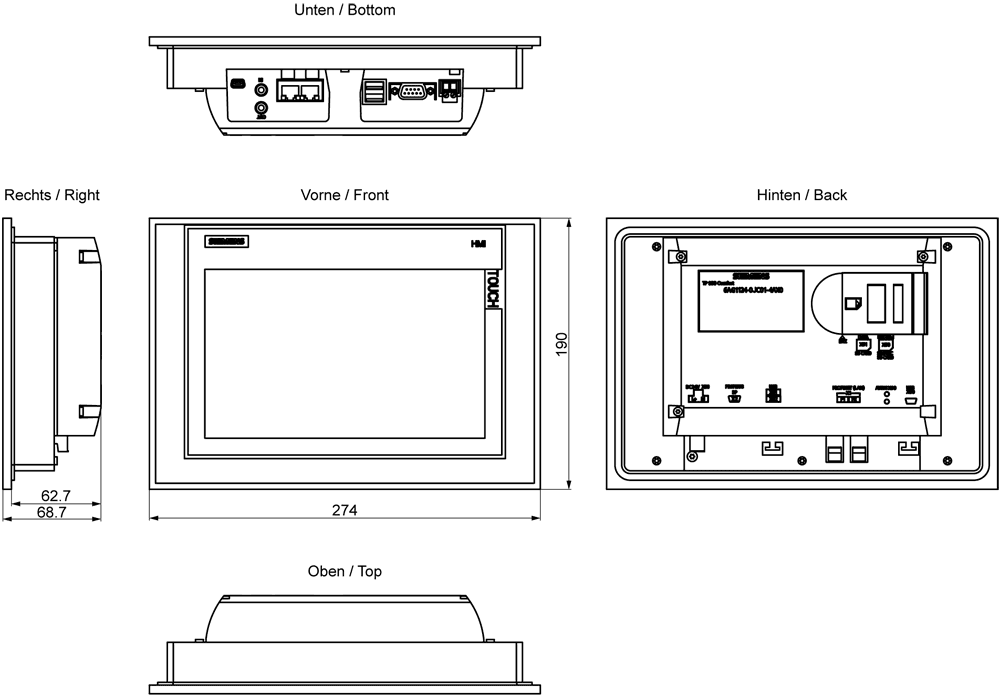

Display width195 mm
Display height117 mm
mounting depth62.7 mm
Network cameraYes
Processor typeX86
Rated value (DC)24 V
IP (at the front)IP65
Screen diagonal9 in
— maintenance-freeYes
Number of colors16 777 216
Design of displayTFT
Message indicatorYes
Mounting positionvertical
Recipe managementYes
— Number of entries1 024
— Short-term archiveYes
— Circulating bufferYes
— Sequential archiveYes
Mounting cutout, width251 mm
SIMATIC HMI USB stickYes; Up to 8 GB
Weight (with packaging)2.6 kg
Active power input, typ.18 W
Mounting cutout, height166 mm
Type of supply voltageDC
— Number of bit messages4 000
Height of housing front190 mm
Number of SD card slots2
— Number of function keys0
Number of USB interfaces2; USB 2.0
Product type designationTP900 Comfort
Weight (without packaging)1.9 kg
With software interfacesNo
— At maximum tilt angle, max.35 °C; = Tmax
— At maximum tilt angle, min.0 °C; = Tmin
— Number of analog messages200
Number of other interfaces0
Starting current inrush I²t0.5 A²·s
Width of the housing front274 mm
Number of RS 232 interfaces0
Number of RS 422 interfaces0; together with RS 485
Number of RS 485 interfaces1; RS 422 / 485 combined
Process value display (output)Yes
Wall mounting/direct mountingNo
Number of parallel interfaces0
— For vertical installation, max.40 °C; = Tmax
— For vertical installation, min.0 °C; = Tmin
Memory available for user data12 Mbyte
Number of 20 mA interfaces (TTY)0
Number of Visual Basic ScriptsYes
Current consumption (rated value)0.75 A
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Supports protocol for PROFINET IOYes
— Number of function keys with LEDs0
Mounting in portrait format possibleYes
Process value default (input) possibleYes
SIMATIC IPC USB Flashdrive (USB stick)Yes; Up to 16 GB
Mounting in landscape format possibleYes
— global warming potential, (total) [CO2 eq]254 kg
Number of industrial Ethernet interfaces1; 2 ports (switch)
Alarm system (incl. buffer and acknowledgment)Yes
SIMATIC HMI MM memory card: Multi Media CardYes; Up to 128 MB
SIMATIC HMI CF memory card Compact Flash CardNo
— global warming potential, (during operation) [CO2 eq]194 kg
— global warming potential, (during production) [CO2 eq]61.5 kg
SIMATIC HMI SD memory card: Secure Digital memory cardYes; Up to 2 GB
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— global warming potential, (after end of life cycle) [CO2 eq]-1.87 kg
— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request
— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *
— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *
— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
maximum permissible angle of inclination without external ventilation35°
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
