SIPLUS HMI MTP1200
Nomor Part: 6AG1123-3MB32-2AW0
Kategori
Graphic panel

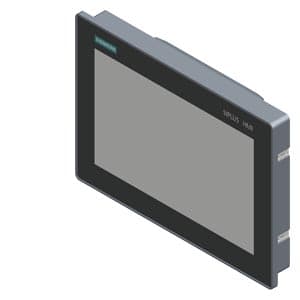

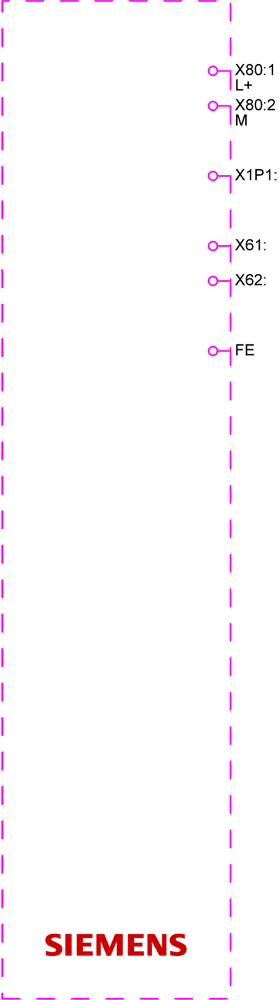

Siemens 6AG1123-3MB32-2AW0. SIPLUS HMI MTP1200, Unified Basic Panel, based on 6AV2123-3MB32-0AW0 with conformal coating -20 ...+50 °C touch operation 12" widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Basic V18 Update 3, contains open-source software, which is provided free of charge see enclosed Blu-ray.
Spesifikasi
Other
IRTNo
MPINo
RAMYes
— MRPNo
FlashYes
IP (rear)IP20
PrinterNo
PROFINETYes
— EthernetNo
LibrariesYes
— retentiveYes
JavaScriptYes
NEMA (front)NEMA 4, NEMA 4x (when installed)
USB memoryYes
— USB memoryYes
PeripheralsBarcode reader
proprietaryYes
— Memory cardNo

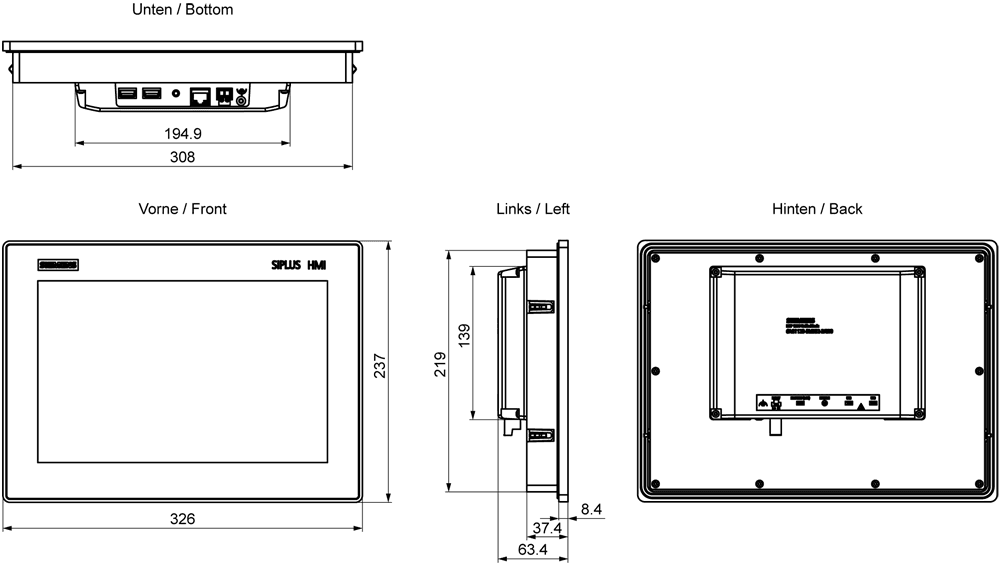

Display width261.1 mm
Display height163.2 mm
mounting depth55 mm
Network cameraNo
Processor typeARM
Rated value (DC)24 V
IP (at the front)IP65
Screen diagonal12.1 in
— maintenance-freeYes
Number of colors16 777 216
Design of displayTFT
Message indicatorYes
Mounting positionvertical
Recipe managementYes
— Short-term archiveYes
— Circulating bufferYes
— Sequential archiveYes
Applications/optionsNo
Mounting cutout, width310 mm
SIMATIC HMI USB stickYes
Weight (with packaging)2.77 kg
Active power input, typ.11.1 W
Mounting cutout, height221 mm
Type of supply voltageDC
— Number of bit messages2 000
Current consumption, max.0.92 A; at 19.2 V
Height of housing front237 mm
Number of SD card slots0
Number of USB interfaces2; USB 2.0
Product type designationMTP1200 Unified Basic
Weight (without packaging)2.08 kg
— At maximum tilt angle, max.35 °C; = Tmax
— At maximum tilt angle, min.-20 °C; = Tmin; Startup @ 0 °C
— Number of analog messages100
Starting current inrush I²t0.36 A²·s
Width of the housing front326 mm
Number of RS 422 interfaces0
Number of RS 485 interfaces0
— For vertical installation, max.40 °C; = Tmax
— For vertical installation, min.-20 °C; = Tmin; Startup @ 0 °C
Number of Visual Basic ScriptsNo
Current consumption (rated value)0.29 A
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Supports protocol for PROFINET IONo
Mounting in portrait format possibleYes
SIMATIC IPC USB Flashdrive (USB stick)Yes
Mounting in landscape format possibleYes
— global warming potential, (total) [CO2 eq]234 kg
Number of industrial Ethernet interfaces1; Gigabit Ethernet (IE/PN), RJ45
Alarm system (incl. buffer and acknowledgment)Yes
SIMATIC HMI MM memory card: Multi Media CardNo
SIMATIC HMI CF memory card Compact Flash CardNo
— global warming potential, (during operation) [CO2 eq]190 kg
— global warming potential, (during production) [CO2 eq]49 kg
SIMATIC HMI SD memory card: Secure Digital memory cardNo
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— global warming potential, (after end of life cycle) [CO2 eq]-5.2 kg
— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
current consumption (for rated value of supply voltage), max.0.67 A
current consumption (for rated value of supply voltage), min.0.24 A
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)
— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *
— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *
— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
maximum permissible angle of inclination without external ventilation35°
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
