Aktif
distribution block 1-pole
Nomor Part: 5ST2511
Merek
Kategori
Feed-through terminal block
Siemens 5ST2511. distribution block 1-pole, IEC 400 A, 1000 V AC / 1500 V DC; UL 310 A, 600 V AC/DC; input: 1x 95-185 mm2, output: 2x 2.5-35 mm2, 5x 2.5-16 mm2, 4x 2.5-10 mm2 for DIN-rail mounting.
Spesifikasi
Mechanical
Net Weight407 g

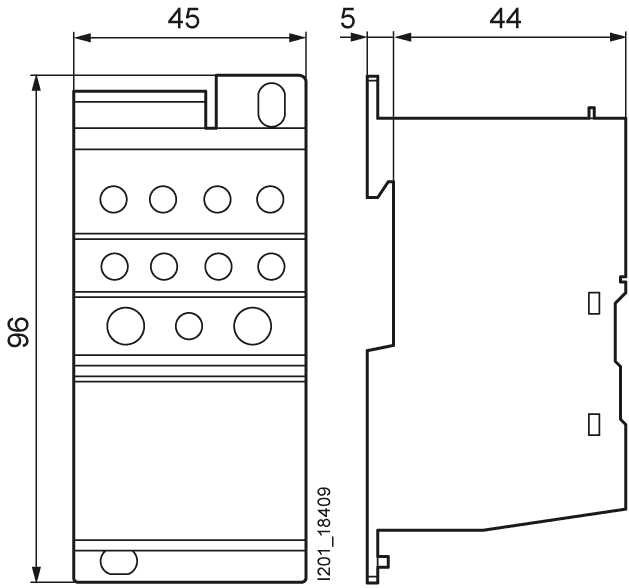

Dimensions
Height44 mm
Other
colorgrey
length96 mm
fastening methodDIN rail
product brand nameSENTRON
product designationDistribution block
type of connection 1screw-type terminal
type of connection 2screw-type terminal
design of the productdistribution block
position of the terminalbottom
number of terminal levels3
